Hubbell HBL415HR4-PLEX HG Receptacle, 15A 125V, 5-15R, RD

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL415HR | Codale Part # 4341581
$63.42/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, 4- Plex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Red, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Hospitals
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Polycarbonate
Grade
Hospital
Grounding
Grounding
Horsepower
0.5 hp
Material
Polycarbonate
Mounting Type
Screw, Surface
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2,CSA,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Smooth Face
Tc Connection
Back & Side Wired
Type
Quad Receptacle
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-12 in

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585016122
Color
Red
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
4-PLEX Receptacle
Product UPC
78358501612
Weight
0.4 lb

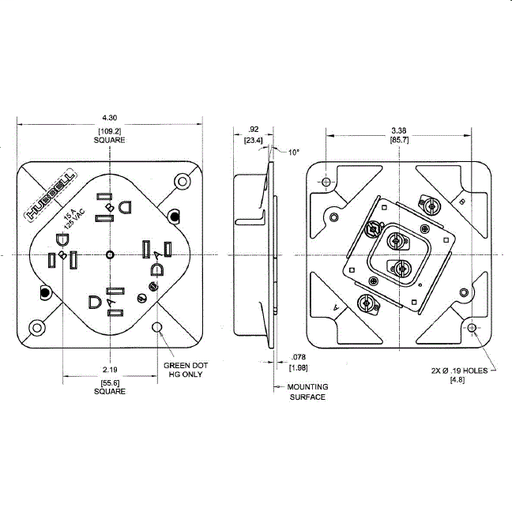

Dimensions

Height
0.92 Inch
Length
4.3 Inch
Width
4.3 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Triple wipe contacts
  • Easily accessible break-off tabs for split wiring
  • Three conductors energize all four outlets
  • High impact resistant Polycarbonate construction
