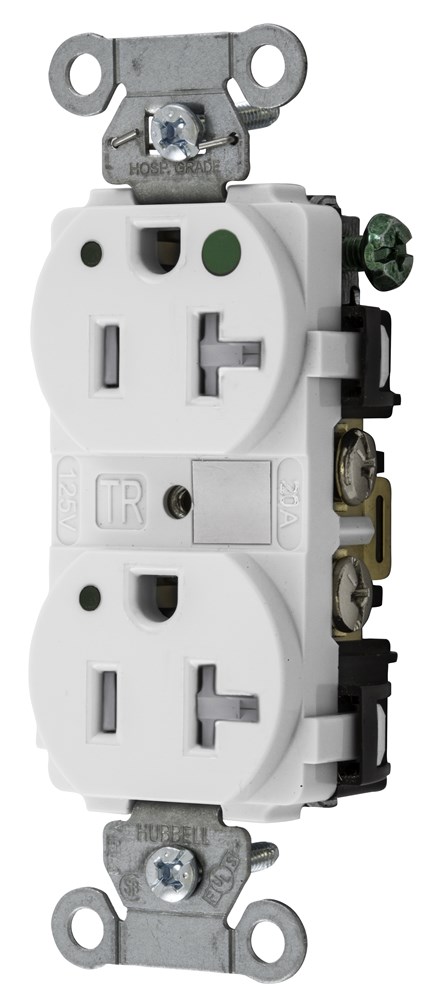

Product image for Hubbell 8300WLTRA Straight Blade Device, Tamper Resistant Duplex Receptacle, Hospital Grade, Hubbell-Pro, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White
Image thumbnail 0

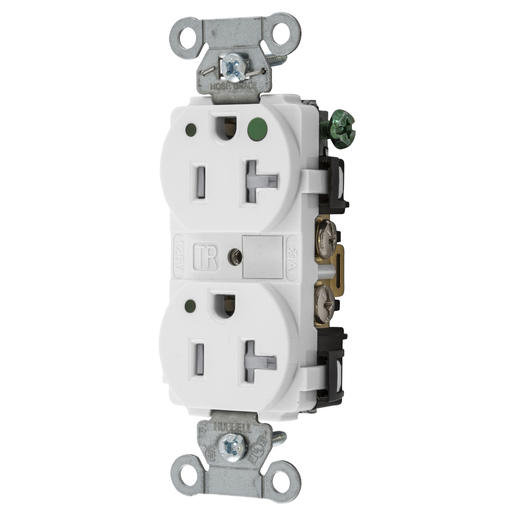

Image thumbnail 1
Image thumbnail 2
Email

Hubbell 8300WLTRA Straight Blade Device, Tamper Resistant Duplex Receptacle, Hospital Grade, Hubbell-Pro, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 8300WLTRA | Codale Part # 4343271
$51.75/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Tamper Resistant Duplex Receptacle, Hospital Grade, Hubbell-Pro, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White

Technical Information

Amperage
20 Amp
Applications
Hubbell-Pro Heavy Duty Hospital Grade
Conductor Size
12-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
3.28 in x 1.57 in x 1.15 in
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Smooth Face
Tc Connection
Terminal Screws
Type
Non-Reversing
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585542379
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Hubbell-Pro
Product UPC
78358554237
Weight
0.2 lb

Dimensions

Height
1.15 Inch
Length
3.28 Inch
Width
1.57 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Tamper-resistant shutter complies with national electrical code requirements
  • Green LED Power Indicators to identify emergency circuits
  • Triple wipe contacts
  • High impact resistant face with circuit I.D. marking area
  • Steel mounting strap
  • LED Indicator, Tamper Resistant
