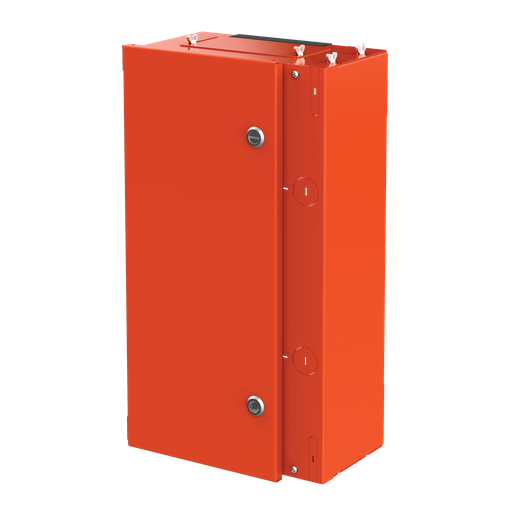

Product image for Hoffman AID2212 Medium, Internal Disconnect Shield, 22x12x6.5in, Safety Orange, Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman AID2212 Medium, Internal Disconnect Shield, 22x12x6.5in, Safety Orange, Steel

Manufacturer: nVent Hoffman | Catalog # AID2212 | Codale Part # 4343428
$555.54/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The internal disconnect shield helps reduce the risk of electric shock and arc flash by providing a method to barrier the disconnect switch inside the main enclosure, which minimizes incidental contact or exposure to the line side lugs. Designed to cover variable-depth or cable-operated disconnect switches, it can be retrofitted in an existing system or integrated into a new system. The internal disconnect shield does not eliminate the potential for an arc flash. It is not designed to contain the heat and pressure or direct it away from workers if an arc flash does occur.

Technical Information

Material
Steel
Type
Medium

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510358747
Color
Orange
Finish
Smooth
Product UPC
78351035874
Used With
60 - 200 A Wall Mount Disconnect Switch
Weight
18.6 lb

Dimensions

Depth
6-1/2 Inch
Height
8.6 Inch
Length
29.1 Inch
Thickness
1.52 mm
Width
14.10 in
DISK UNSPSC
39121902
Features
  • Body construction includes flanges and joints to meet UL Type 1 construction requirements
  • Quarter-turn slotted latch
  • Spring-loaded slam latch with 7mm square insert for automatic latching
  • 110-degree door stop to prevent incidental contact
  • Gland plate top and bottom for easy wire installation
  • Wing nuts for gland plates for tool-less installation
  • Ground stud on door and body
  • Open back with mounting holes on back flanges for mounting on main enclosure sub-panel
  • Knock-outs for variable-depth or cable-operated disconnect switches
  • Symmetrically designed to use with left-hand or right-hand disconnect switches
  • Hardware kit includes: panel mounting screws, key for spring-loaded slam latch, grommet to cover knockout for variable-depth disconnect switches, and installation instructions
