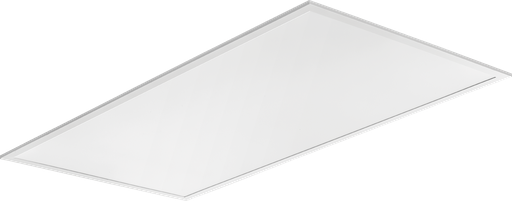

Lithonia CPX-2X4-ALO8-SWW7-M2 LED Flat Panel 2x4, 3500-4300-5500, 35/40/50K Switchable White

Manufacturer: Lithonia Lighting | Catalog # CPX-2X4-ALO8-SWW7-M2 | Codale Part # 4343593
$129.59/ea
ea
Log in or register to view your price, purchase history, and more!
583 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
The 2 ft. x 4 ft. CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price. The smooth, even lens projects a crisp and clean aesthetic. This CPX configuration offers Adjustable Light Output (ALO) for the option of 3800-6200 lumens and Switchable White (SWW) for three color temperature in one - 35/40/50K CCT. CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects.

Technical Information

Applications
Budget Conscious School, Commercial Office or Small Retail Footprint Projects
Average Rated Life
60,000 hr
Ballast Type
0 - 10 V Dimming to 10%
Color Rendering Index
80
Color Temperature
3500/4000/5000 K
Correlated Color Temp
3500 K
Dimmable?
Yes
Fixture Wattage
28.1 - 50.56 W
Lamp Life
50,000 hr
Lamp Type
LED
Lens Color
White
Lens Type
Satin White
Lumens
3,813 - 6,563 Im
Material
Steel
Mounting Type
Recessed
Power Source
Hardwired
Size
47.875x23.875x1.68
Style
Traditional
Tc Connection
Hardwired
Type
Rectangular, Switchable
Voltage
120 Volt
Wattage
51 Watt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
193048542844
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Semi-Gloss
Fixture Type
Flat Panel
Housing Finish
Semi-Gloss White
Housing Material
Extruded Aluminum
Product UPC
19304854284
Shape
Rectangle
Weight
11.02 lb

Dimensions

Height
1.7 Inch
Length
47.8 Inch
Width
23.8 in

Certifications and Compliance

Country of Origin
China,China
Features
  • TECHNOLOGY: Adjustable Lumen Output (ALO) and Switchable White (SWW) features allow for this panel to offer 9 potential configurations within one fixture, using two switches
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • DIMMING: 0-10 volts driver for dimming down to 10 percent
  • RATINGS: Certified for damp locations, CSA certified, IC rated, DLC Standard
  • VOLTAGE: Standard MVOLT for 120-277 volts
  • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 50,000 hours (L70>50,000)
  • INSTALLATION: can be recessed, suspended or surface box mounted with additional kit
  • BATTERY: Field-installable LED emergency driver (PS1055CP) sold separately
  • WARRANTY: 5-year limited warranty

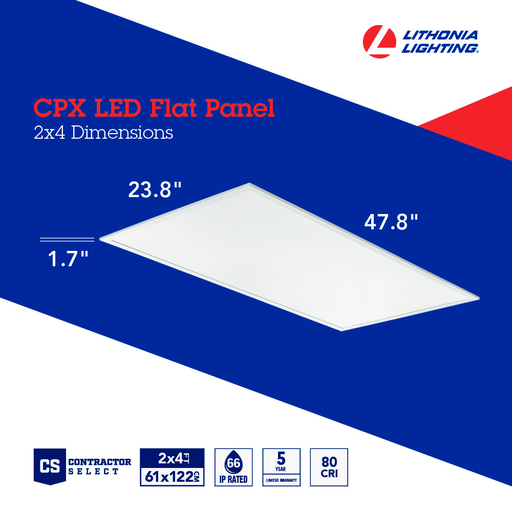

  • DIMENSIONS: (l x w x h) 47.8 in. x 23.8 in. x 1.7 in.
Applications
  • Education
  • Government
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Residential
  • Retail
Standards
  • CSADLC Premium
  • DLC Standard
