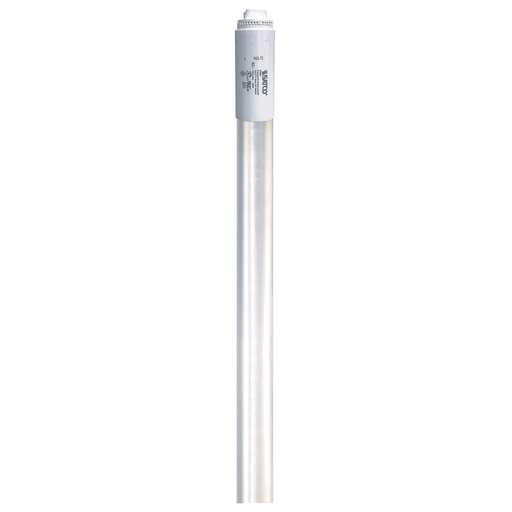

Satco S16405 18 Watt T8 LED; 6500K; 2300 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass

Manufacturer: SATCO Lighting | Catalog # S16405 | Codale Part # 4343874
$43.76/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
18W T8 LED; 6500K; 2300 Lumens; 120-277V; Type B; Single Ended; Ballast Bypass

Technical Information

Amperage
0.150-0.065 Amp
Average Rated Life
50000 hr
Base
Recessed Double Contact HO/VHO
Beam Angle
330
Beam Spread
360
Bulb Shape
T8
Color Accuracy
83
Color Rendering Index
83
Color Temperature
6500 K
Correlated Color Temp
6500 K
Dimmable?
No
Incandescent Equivalent
90 W
Lamp Type
Fluorescent
Lens Color
Frost
Lumens
23,000 Lumen
Material
Plastic
Operating Frequency
50 Hz
Operating Temperature
-22 degrees F
Power Factor
0.9
Technology Type
LED
Type
Type A
Voltage
120 Volt
Wattage
18 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923164057
Finish
Frosted
Product UPC
04592316405
Weight
0.81 lb

Dimensions

Diameter
1 Inch
Length
48 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • MOL: 46.00 inches, MOD: 1.00 inch
  • Superior 83 CRI light quality, 2300 lumens, 6500K daylight, with a 360 degree beam spread
  • Rated for enclosed fixtures
  • Damp location rated
  • 18 watt LED replaces 63 watt fluorescent
  • Frost finished linear plastic bulb
  • LED energy efficient fixture
  • 5 Year Limited Warranty
Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures. No ballast or external driver required
  • Direct wire 120-277V line voltage
  • Single ended wiring
