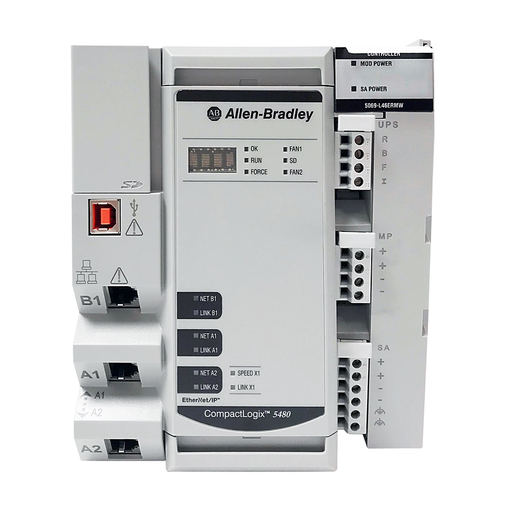

Product image for A-B 5069-L450ERMW CompactLogix 5480
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

A-B 5069-L450ERMW CompactLogix 5480

Manufacturer: Allen Bradley / Rockwell | Catalog # 5069-L450ERMW | Codale Part # 4344166
$17,503.01/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
CompactLogix 5480 Controller

Technical Information

Applications
High perf. Motion,COTS,Custom
Enclosure
None (open-style)
Memory
20MB(Lgx),6GB/64GB SSD (OS)
Operating Temperature
060 degrees C (32140 degrees F)
Power Supply
4A (10A max) @ 1832V DC
Type
Controller

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
CompactLogix

General Product Info

12-Digit UPC
194033098223
Product UPC
19403309822
Weight
2.3500 lb

Dimensions

Height
166.2 Inch
Length
126.54 Inch
Width
133.66
Features
  • Provides a Logix based real-time controller that runs an instance of Windows 10 IoT Enterprise
  • Provide enhanced diagnostics information
  • Ideal for small to mid-size applications that require low axis motion and I/O point counts
  • Supports up to 31 local Bulletin 5069 Compact I/O™ modules
  • Provide a local safety connectivity to the Compact GuardLogix 5380
  • Offer a 1 gigabit (Gb) embedded Ethernet port that enables high-speed communications, I/O, and motion control
  • Provide field-side power to field-side devices that are connected to some Compact 5000 I/O modules
  • Offer Integrated Motion on EtherNet/IP up to 32 axes
  • Is ideal for mid-size to large applications requiring high performance control and data throughput
  • Enable high-speed I/O, motion control, and Device Level Ring/Linear Topologies
  • Provide distributed I/O to the Compact GuardLogix 5380 and GuardLogix 5580, which is accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP
  • Support up to 31 I/O modules
  • Provide high-speed backplane communications for faster transfer rates
  • Support 1 Gb embedded switch technology for Linear and Device Level Ring topologies
  • Rated up to SIL3/PLe
  • Include dual configurable ports that supports Dual IP address
  • Support up to 31 Bulletin 5069 Compact I/O™ modules
  • Supported in Studio 5000 Logix Designer® version 32
  • Support distributed I/O modules via an EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers
  • Includes one GbE Ethernet port as a dedicated commercial OS network interface
  • Includes two USB 3.0 ports for OS peripheral and expanded data storage capability
  • Includes three GbE Ethernet/IP ports that enable high-speed communications, I/O, and motion control (two are configurable, and support Dual IP address or Device Level Ring)
  • Provide faster safety reaction time
  • Offer enhanced security features which include digitally-signed controller firmware, controller-based change detection, and logging and role-based access control to routines and Add-On Instructions
  • Use the slim 5069-AENTR for small space requirements
  • Support up to 31 I/O modules per controller or adapter
  • Offer controller functions optimized for maximum system performance
  • Provide separate system power for better isolation and built-in power input with field power to I/O modules
  • Function as local I/O in a CompactLogix™ 5380 or CompactLogix 5480 control system or as distributed I/O accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP network for CompactLogix 5380 and ControlLogix® 5580 controllers
  • Provide enhanced diagnostics and troubleshooting
  • Allows users to deploy Windows 10 based off the shelf and/or custom applications while tightly integrated with real time Logix control
  • Offers enhanced security features that include digitally-signed controller firmware, controller-based change detection, and a log of role-based access control to routines and Add-On instructions
  • Enables high-speed I/O, motion control, and Device Level Ring/Linear topologies
  • Are available in high-speed counter, digital input, digital output, analog input, analog output, AC input, AC output, isolated and non-isolated relay output, address reserve modules, and field potential distributor
  • Includes integrated DisplayPort for high definition industrial monitor connectivity
  • Provide improved status indicators to monitor and troubleshoot systems
