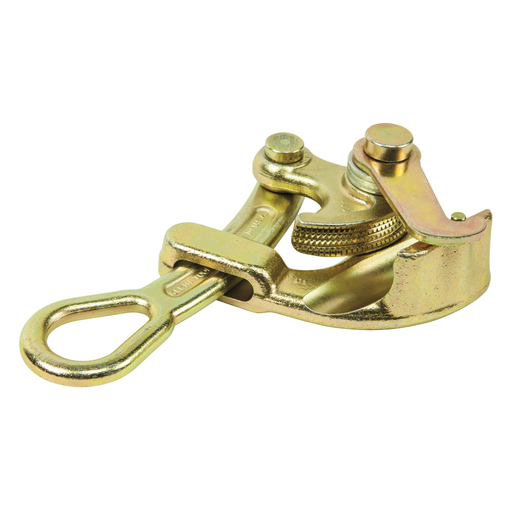

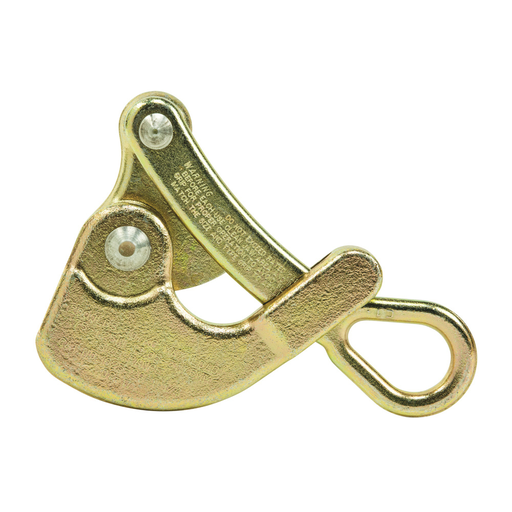

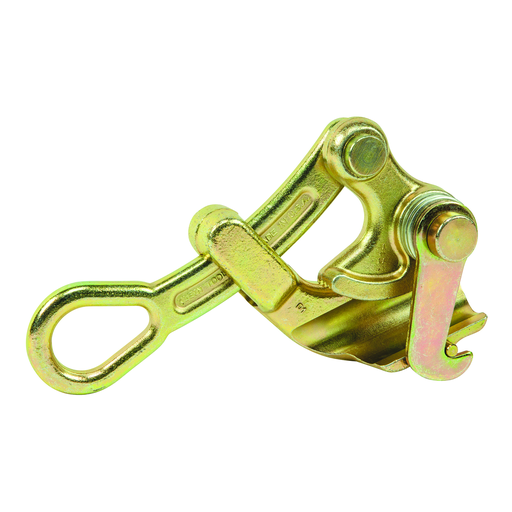

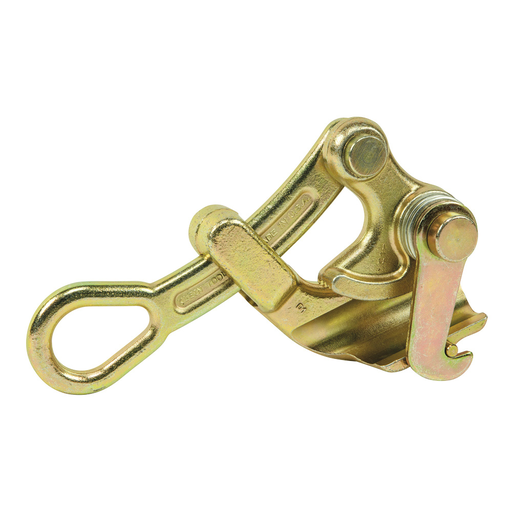

Product image for KLEIN 162520-114 Haven's® Grip, 1-1
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

KLEIN 162520-114 Haven's® Grip, 1-1

Manufacturer: Klein Tools | Catalog # 162520-114 | Codale Part # 4345219
$400.23/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The Klein Tools 1625 Series Wire Rope Haven's® Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. Available with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Technical Information

Applications
Wire Pulling
Cable Type
Concentric Neutral Wire
Jaw Type
Aggressive
Type
Eccentric Jaw
Voltage
<NA>~~

Manufacturer Information

Brand
Klein Tools, Inc.
Sub Brand
Klein Triple Taps

General Product Info

12-Digit UPC
092644471988
Product UPC
09264447198
Weight
3.7 lb 1.7 kg

Dimensions

Depth
6.867 Inch
Height
2.2 Inch
Length
6.86 Inch
Overall Length
6.86 in
Width
4.05 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ideal for light, compact grip work where conductor damage is not a factor
  • Works with 0.75-Inch to 1.25-Inch (19.05 to 31.8 mm) cable diameter range
  • 2000 lb (907 kg) maximum safe load
  • Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.4 mm) cable area
  • Swing latch helps hold cable in the jaw
  • Made from extremely durable forged and heat treated steel
  • Every grip is inspected by hand and actuated to insure proper function
  • Works with 0.75-Inch to 1.25-Inch (19.05 to 31.8 mm) cable diameter range with 2000-Pound (907 kg) maximum safe load
  • Made in USA
Warnings
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.
