PAN LDPH5WH8-A Surface Raceway, LDP

Manufacturer: PANDUIT | Catalog # LDPH5WH8-A | Codale Part # 4345304
$5.42/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual

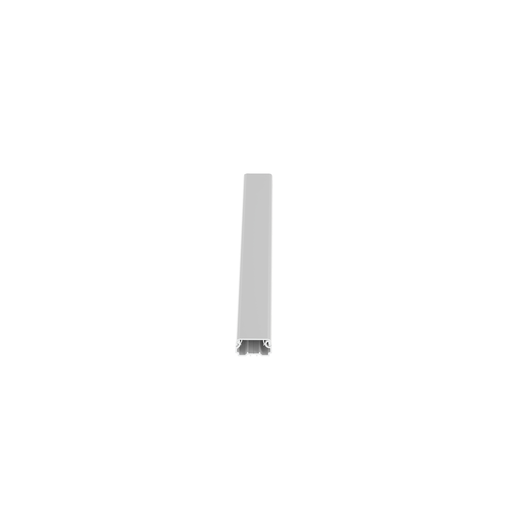

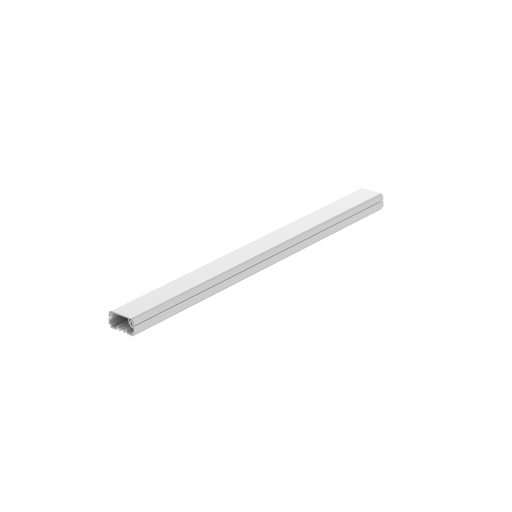

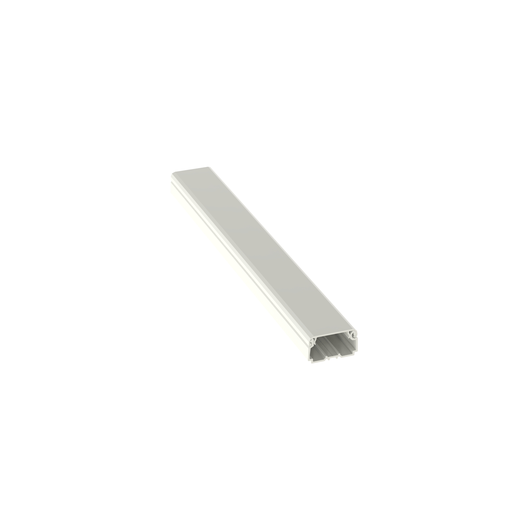

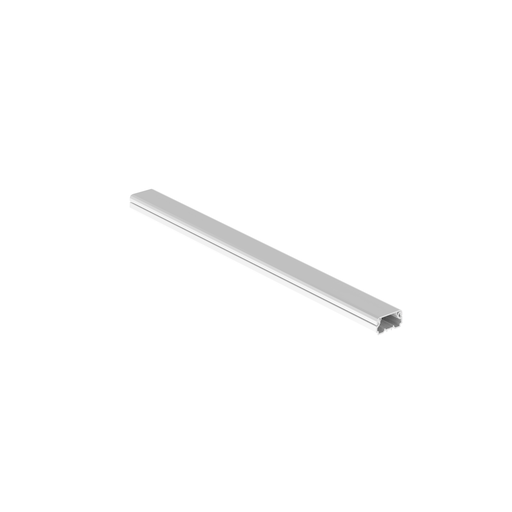

The LDPH5 power rated surface raceway is a two-piece latching raceway with cover suitable for applications up to 600 V. It features pre-punched mounting holes and factory-applied adhesive backing for fast mounting. It is 8 feet in length and is 1.02 inches wide by 0.55 inches deep. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is white.

Technical Information

Applications
For Schools, Hospitals, Offices, Homes or Anywhere a Small, Secure, Low Profile Raceway is Needed
Material
PVC
Mounting Type
Adhesive
Number of Channels
1
Type
Power Rated, Bottom Perforation

Packaging

Pkg Qty
8

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Way

General Product Info

12-Digit UPC
074983344017
Color
White
Product UPC
07498334401
Weight
1.0000 lb

Dimensions

Height
0.55 Inch
Length
2.4 m
Overall Length
8 ft
Width
26 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant.
