Burndy 1PBS250 UV Rated Black UNITAP™, 2, #10 - 250 Kcmil, 401" L, 119" W

Manufacturer: Hubbell-Burndy | Catalog # 1PBS250 | Codale Part # 4345756
$73.06/ea
ea
Log in or register to view your price, purchase history, and more!
70 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet
UV Rated Black Unitap, 2, #10 - 250 Kcmil, 4.01 in L, 1.19 in W.

Technical Information

Applications
For Indoor Use Only, Copper Or Stranded Aluminum
Conductor Size
1 AWG
Connection Type
Multi Tap
Direct Burial?
No
Insulation Type
Plastisol
Material
Aluminum
Plated?
No
Plating Type
Unplated
Size
2.1 IN Height X 1.19 IN Width X 41 IN Length
Temperature Rating
194degrees F
Type
BIBS, Multi-Port
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810295915
Product UPC
78181029591
Weight
0.2500 lb

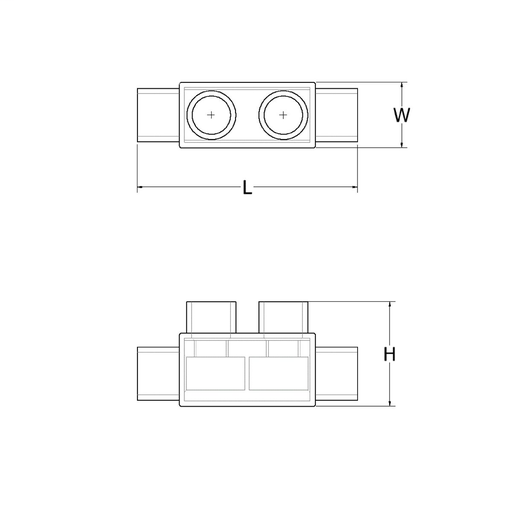

Dimensions

Height
2.1 Inch
Length
4.01 Inch
Overall Length
102 mm
Width
1.19 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • UV Rated Covering over AL6061-T6 aluminum body saves time, lowering installation costs and eliminates taping
  • Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area
  • Range-taking capability reduces the number of connectors necessary to carry in inventory
