Panduit CJ688TGBU-C Mini-Com® UTP RJ45

Manufacturer: Panduit | Catalog # CJ688TGBU-C | Codale Part # 4347356
$24.69/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual

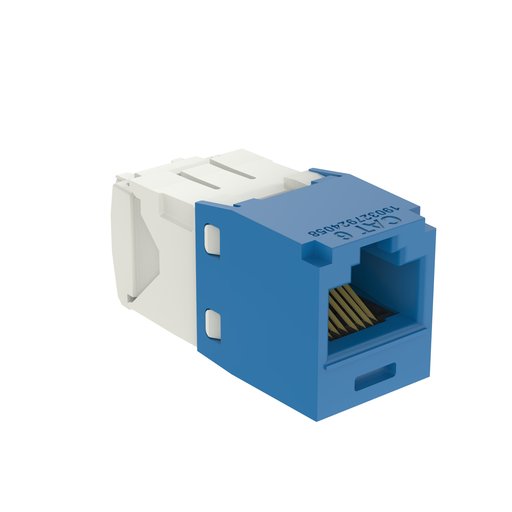

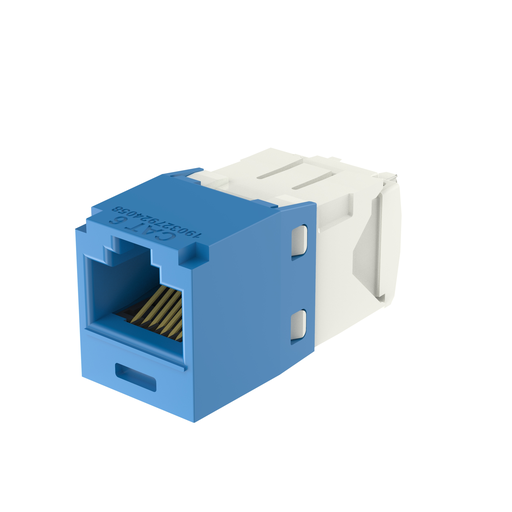

The Mini-Com® Cat 6 UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is blue and includes 100 per package.

Technical Information

Applications
Unshielded
Cable Type
Category 6
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Type
Universal, Unshielded

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983081912
Color
Blue
Product UPC
07498308191
Weight
2.4000 lb

Dimensions

Depth
1-1/2 Inch
Height
0.71 Inch
Overall Length
38.1 mm
Width
15.7 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Exceeds component and channel requirements of ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards at swept frequencies 1 to 250 MHz for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 250 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Standards at Swept frequencies 1 to 250 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Compliant
