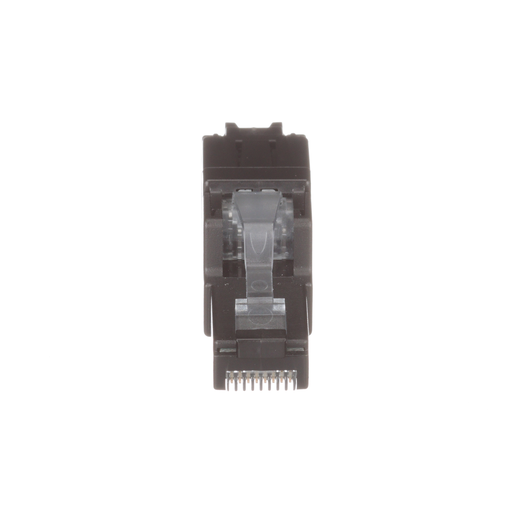

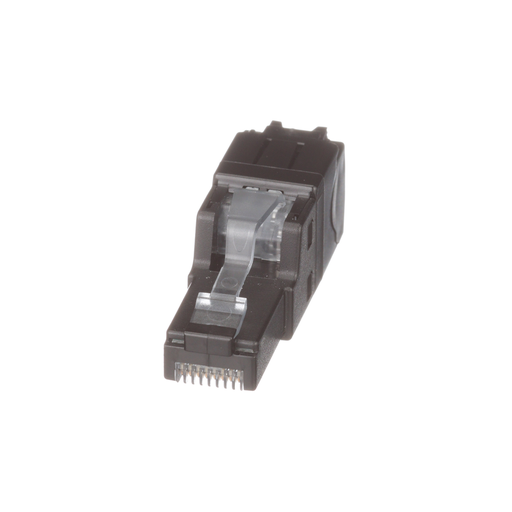

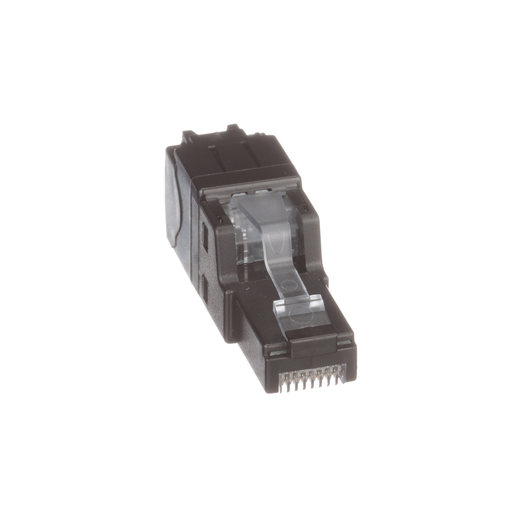

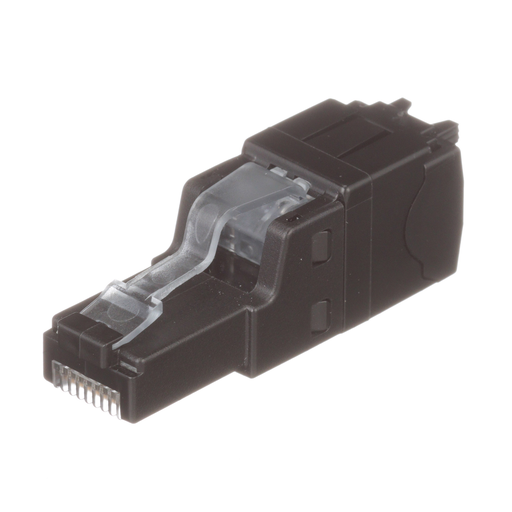

Panduit FP6X88MTG-X TX6A™ RJ45, Cat 6A UTP Field Term Plug, 22-26 AWG, Black

Manufacturer: PANDUIT | Catalog # FP6X88MTG-X | Codale Part # 4347868
$36.00/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The TX6A™ Category 6A UTP Field Term Plug terminates 4-pair, 22-26 AWG, 100 ohm, UTP twisted pair cable and is backwards compatible with Cat 6 and 5e. The plug utilizes TG style technology to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. This plug simplifies installation of common devices such as cameras and wireless access points. The field term plug is black and includes 10 per package.

Technical Information

Applications
For Connecting the Increasing Number of Network Powered Devices Requiring a Plug Connection to the Network and Where Field Attachment of the Plug to UTP Cable is Desired
Cable Entry
T568A/T568B
Cable Size
26-22 AWG
Cable Type
Category 6A, Solid or Stranded
IP Rating
IP20
Material
Polycarbonate
Max Operating Temperature
167 degrees F
Min Operating Temperature
-40 degrees C
Number of Positions
8
Performance Level
Category 6A
Temperature Rating
-40 to 75 degrees C
Type
Unshielded, RJ45, 8-Wire

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
TX6A™

General Product Info

12-Digit UPC
613056308510
Color
Black
Environmental Conditions
-40 F
Product UPC
61305630851
UNSPSC
43223301
Weight
0.2130 lb

Dimensions

Depth
1.88 Inch
Height
0.62 Inch
Overall Length
1.82 in
Width
0.53 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Exceeds ANSI/TIA 568-C.2 Category 6A and ISO 11801 Class EA Channel performance requirements with up to two field term plugs in channel. Meets or exceeds proposed TIA Modular Plug Terminated Link requirements with up to two field term plugs in link, Meets ANSI/TIA-1096-A (formerly FCC Part 68), IEC 60603-7, IEC 60529 (IP 20), Supports IEEE 802.3af / 802.3at (PoE/PoE+) and proposed 802.3bt type 3 and type 4 (PoE++) applications. Supports Power over HDBaseT up to 100 watts, RoHS compliant
