NVENT EFS 566570 FLEXIBAR SUMMUM 4X

Manufacturer: nVent Hoffman | Catalog # 566570 | Codale Part # 4348761
$179.95/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

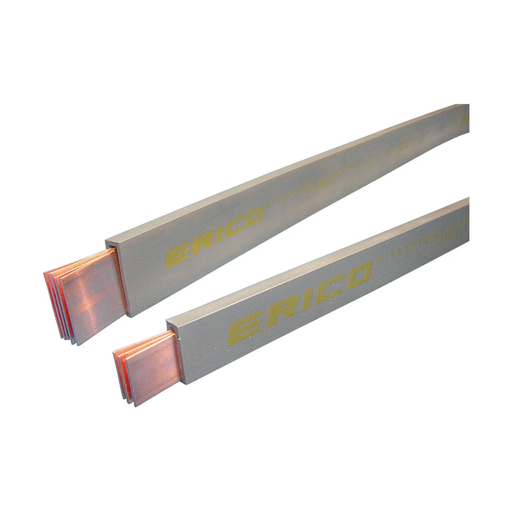

nVent ERIFLEX Flexibar Summum, Halogen Free, 0.945" x 0.039", 189.46 kcmil

Technical Information

Applications
Power Connections
Material
Copper
Type
nVent ERIFLEX Flexibar Flexible Busbar

Manufacturer Information

Brand
nVent Eriflex
Sub Brand
ERIFLEX

General Product Info

12-Digit UPC
782856864141
Product UPC
78285686414
Weight
0.96 kg

Dimensions

Length
6.56-6.56 Foot
DISK UNSPSC
26121541
Features
  • Halogen free solution for applications requiring a low smoke solution
  • Thin layers of bare electrolytic copper formed into a stack
  • Silver or tinned nVent ERIFLEX Flexibar Summum available on request
  • Insulated by halogen-free, high-temperature silicone

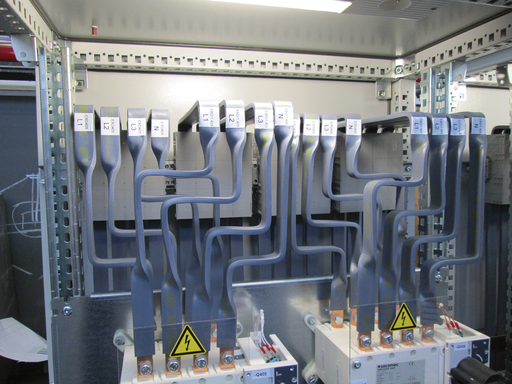

  • Easily bent, folded, and twisted, improving assembly flexibility, shortening connections, and decreasing footprint
  • Dramatically smaller and more flexible than comparable cable based on ampacity
  • Better power density than cable with lower skin effect ratio
  • Connections made by punching and bolting directly through the copper laminates, clamping onto the end of the nVent ERIFLEX Flexibar, or welding using nVent ERICO Cadweld
  • No lugs needed, reducing installation time and improving resistance to vibration
  • Weight savings and material savings compared to wire alternatives
  • Reduces total installation cost
  • Very high resistance to UV and ozone
  • Limiting oxygen index (LOI)
  • Traceability codes and designation part numbers printed on insulation
  • Conforms to NF EN 45545 obtaining an HL3 classification for chapters R22 and R23
  • EAC compliant
  • RoHS compliant
