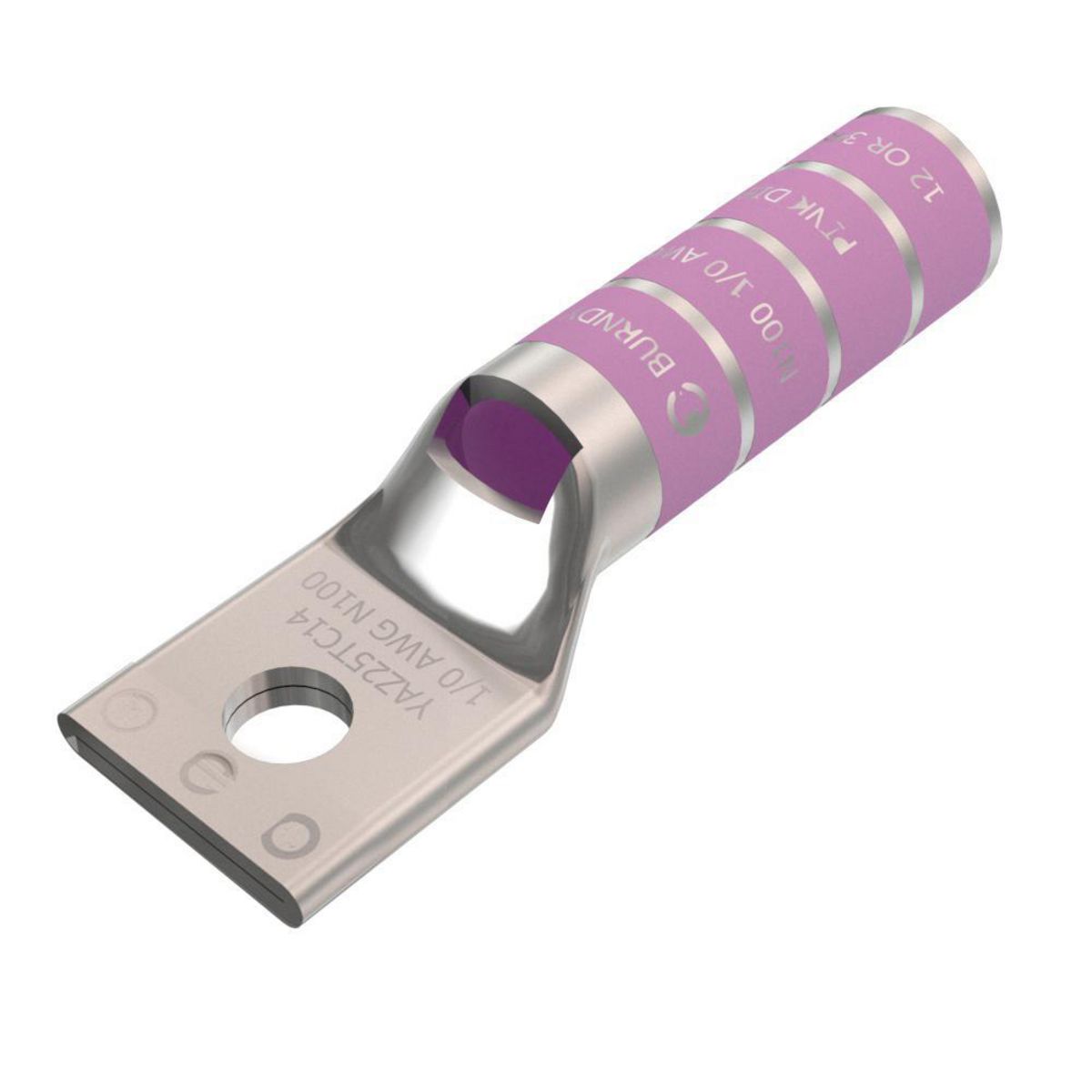

Product image for Burndy YAZ25TC38 1/0 AWG CU, One Hole, 3/8 Stud Size, Long Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Pinnk Color Code, 12 or 348 Die Index
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Burndy YAZ25TC38 1/0 AWG CU, One Hole, 3/8 Stud Size, Long Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Pinnk Color Code, 12 or 348 Die Index

Manufacturer: Hubbell-Burndy | Catalog # YAZ25TC38 | Codale Part # 4352580
$24.32/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Cu Tubing Hylug (One Hole Code), 1 Hole with Inspection Window, 1/0 AWG Code,100 Navy, 600V-35kV, 3/8" stud, Long, Compression, 0.40 in BCD, Pink.

Technical Information

Applications
For Code Conductor
Cable Size
1/0 AWG
Color Coding
Pink
Conductor Material
Copper
Conductor Size
1/0 AWG
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
1 Hole
Plated?
Yes
Plating Type
Tin - Electro Plated
Stud Size
0.375 in
Type
Long Barrel, Skive, Tin Plated
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
HYLUG

General Product Info

12-Digit UPC
781810239889
Finish
Tin Plated
Product UPC
78181023988
Weight
0.0600 lb

Dimensions

Height
3/4 Inch
Hole Size
10 mm
Length
2.59 Inch
Width
0.750 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tongue Angle: Straight, Wire Strip Length: 1-7/16 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W25VT, W25RT, X25RT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W25VT, W25RT, X25RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U25RT, U2CABT Die, (2), Y46 Tool, U25RT, U2CABT Die With PUADP-1 Adapter, (2), Color Code: Pink, Die Index: 12 Or 348, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), MRC840 Tool, (4)
