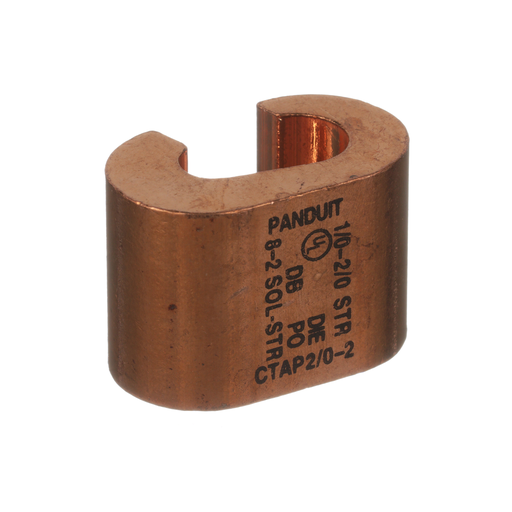

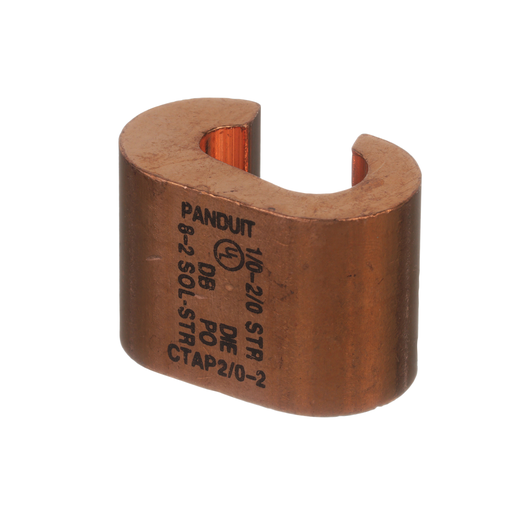

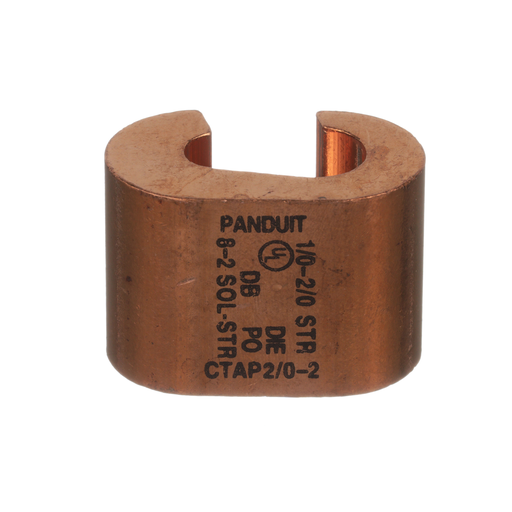

Panduit CTAP2/0-2-X Heavy Duty Copper Compression

Manufacturer: Panduit | Catalog # CTAP2/0-2-X | Codale Part # 4352606
$3,240.11/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The CTAP2/0-2-X Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per ul 486 for use up to 35 kv and temperature rated 90.c when crimped with Panduit and specified competitor crimping tools and dies.

Technical Information

Amperage
8-4/0
Applications
Utility/Ground Grid
Conductor Size
2-1/0 AWG
Material
Copper
Mounting Type
Direct Burial
Tap Size
#8 - #2 AWG SOL or STR
Type
Compression Tap
Voltage
Up-35kV

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
StructuredGround™

General Product Info

12-Digit UPC
074983821303
Color
Copper
Product UPC
07498382130
Weight
1.9000 lb

Dimensions

Height
1.32 Inch
Overall Length
0.8 in
Width
0.93 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 467 listed for Grounding and Bonding and UL 486A for electrical connections up to 35kV.
