PAN FZ2ERQ1Q1SNM003 Opti-Core® 2 Fi

Manufacturer: PANDUIT | Catalog # FZ2ERQ1Q1SNM003 | Codale Part # 4352719
$155.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual

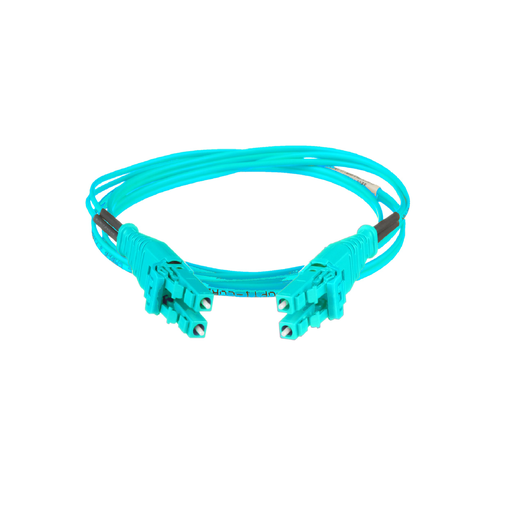

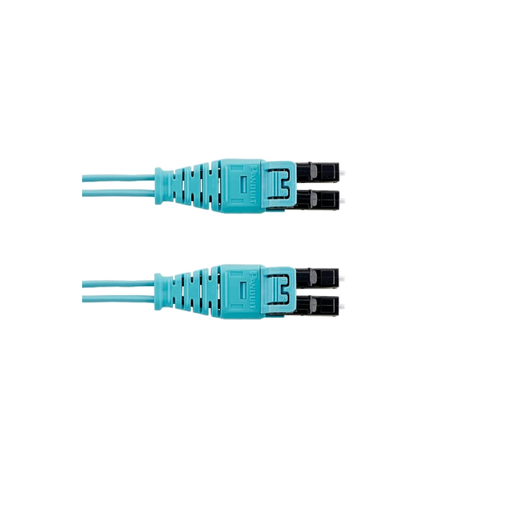

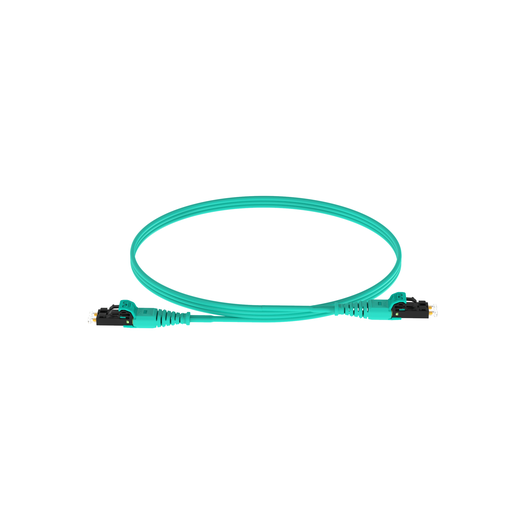

The duplex fiber patch cord is OM4 with a 1.6mm jacket. It is Riser (OFNR) rated and features LC Push Pull connectors. It has standard insertion loss and is 3 meters in length.

Technical Information

Applications
Provide Interconnect and Cross-Connect of Applications in Entrance Facilities, Telecommunications Rooms, Data Centers, at the Desk and Network Applications to Interconnect Pre-Terminated Cassettes in Main Distribution, Horizontal Distribution, and Equipment Distribution Areas
Body Type
Duplex
Boot Color
Aqua
Connector Type
LC Push-Pull
Fiber Cable Size
50/125 m
Fiber Type
OM4
Max Operating Temperature
140 degrees F
Min Operating Temperature
-10 degrees C
Number of Fibers
2
Number of Poles
2 Pole
Number of Screws
2
Plug Type
LC Duplex Push-Pull
Standard
CSA,NOM,UL
Temperature Rating
140 degrees F
Type
OM4 10GbE, Multimode, 2-Fiber

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Opti-Core®

General Product Info

12-Digit UPC
074983994670
Cable Color
Aqua
Color
Aqua
Environment
Indoor
Product UPC
07498399467
Weight
0.0800 lb

Dimensions

Cable Length
3 m
Length
9.84 Inch
Outer Diameter
0.062 in
Outside Diameter
NA
Overall Length
9.84 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Costa Rica,Romania

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10)
