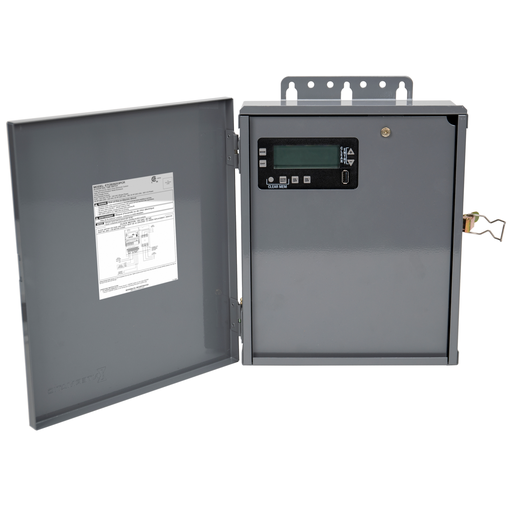

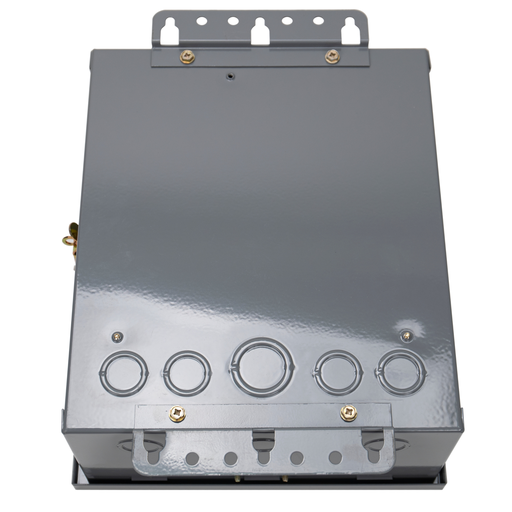

Product image for Intermatic ETCB28253PCR Electronic All-Purpose Contractor Box, 120-480V, 60Hz, 3PST, Outdoor Metal Enclosure
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Intermatic ETCB28253PCR Electronic All-Purpose Contractor Box, 120-480V, 60Hz, 3PST, Outdoor Metal Enclosure

Manufacturer: Intermatic | Catalog # ETCB28253PCR | Codale Part # 4353726
$879.47/ea
ea
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
The ETCB28253PCR Electronic All-Purpose Contractor Box provides an easy-to-install solution for a variety of application needs. The Contractor Box comes with a pre-installed Astronomic timer with 7-day, holiday/exception period scheduling, USB for Schedule transfer and Backup, a 60 A contactor, as well as inputs for overrides and surge protective devices.

Technical Information

Action
3 x SPST
Amperage
60 Amp
Applications
3-Phase Motor Control,Indoor Lighting Control,Machinery & Pump Controls,Outdoor Lighting Control,Timing/Scheduling ON/OFF
Contact Rating
5hp 120vac; 10hp 240vac single phase; 25hp 240vac 3phase; 30hp 480vac 3phase
Enclosure
Indoor/Outdoor Type 3 Metal
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees C
Operating Temperature
-40 to +104 DEG F, -40 to +40 DEG C
Switch Type
3xSPST
Type
Electronic Timer Control
Voltage
240/480 VAC

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275152472
Color
Gray
Product UPC
07827515247
Weight
12.3250 lb

Dimensions

Depth
4-3/4 Inch
Height
11-3/4 Inch
Warranty Length
2 yr
Width
10 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Nickel; Lead
Features
  • 7-Day/365 Day Astronomic Scheduling
  • Up to 96 Scheduling set points
  • Up to 50 Holiday/Exception Period set points
  • USB port for backing up or transferring schedules
  • Built-in 60 A 3-Pole contactor for more robust loads
  • Input for optional \"Timed\" photo control override
  • Input for other types of switches/sensors
  • Terminals for adding Surge Protection
  • 100-hour supercapacitor eliminates the need for battery replacement
  • Requires 120 VAC 60 Hz for powering the control
