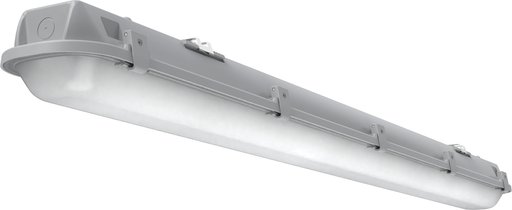

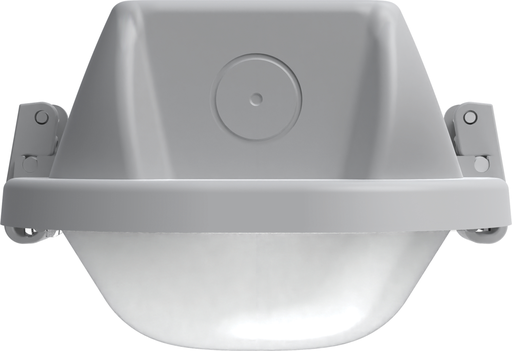

Lithonia CSVT-L48-ALO3-MVOLT-SWW3-80CRI 4ft LED Vapor Tight Strip Light, Switchable Lumens, 120-277V, 35K/40K/50K, 80 CRI

Manufacturer: Lithonia Lighting | Catalog # CSVT L48 ALO3 MVOLT SWW3 80CRI | Codale Part # 4353739
$311.00/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Contractor Select LED Vaportight, 48" long, Switchable Lumens - 3000LM, 4000LM and 5000LM, 120V-277V, Switchable white - 35K, 40K and 50K, 80 color rendering index

Technical Information

Aperture Size
4 ft
Applications
Manufacturing,Parking Garage,Sports And Recreation,Warehouses
Average Rated Life
60,000 hr
Color Rendering Index
80
Color Temperature
3500 K
Correlated Color Temp
3500, 4000, 5000 K
Dimmable?
Yes
Lamp Type
LED
LED Color
3500 K
Lens Color
White
Lens Material
Polycarbonate
Light Source
LED,Static
Lumens
3,000 Lumen
Material
Polycarbonate
Mounting Type
Pendant,Surface,Suspended
Power Source
Hardwired
Size
4 ft
Standard
CSA,NOMDLC Standard
Style
Traditional
Type
Low Bay
Voltage
120 Volt
Wattage
47.6 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194995069507
Color
Gray
Construction
New Construction,Remodel
Environment
Demanding,Indoor,Outdoor
Environmental Conditions
Demanding,Indoor,Outdoor
Fixture Type
Low Bay
Product Series
CSVT
Product Type
Low Bay
Product UPC
19499506950
Shape
Rectangle
Weight
9 lb

Dimensions

Height
3.8 Inch
Length
50.3 Inch
Warranty Length
5 yr
Width
5.4 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Features
  • TECHNOLOGY: Adjustable Lumen Output (ALO) and Switchable white (SWW) features allow for this strip light to offer 9 potential configurations within one fixture, using two switches
  • ENERGY SAVINGS: High-Efficiency LEDs meet DLC Standard
  • DIMMING: 0-10V Dimming standard
  • RATINGS: CSA Certified to UL & C-UL Standards for wet location, IP65 and IP66 rated, NSF splash zone rated
  • VOLTAGE: MVOLT (120-277V) & 347V
  • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 120,000 hours (L70>120,000)
  • INSTALLATION: Surface (wall, ceiling) or suspended (chain, cable) using standard brackets
  • BATTERY: This product does not include an emergency back up supply
  • WARRANTY: 5-year limited warranty
Standard
  • CSA
  • NOMDLC Standard
Application
  • Manufacturing
  • Parking Garage
  • Sports and Recreation
  • Warehouses
Mounting
  • Pendant
  • Surface
  • Suspended
