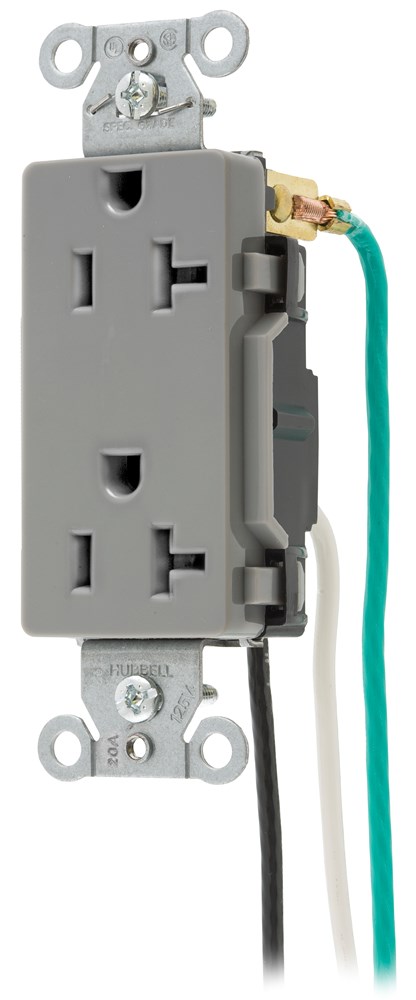

Product image for HWDK DR20GRYP1 DR20GRY W/ 8" SOLID
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HWDK DR20GRYP1 DR20GRY W/ 8" SOLID

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DR20GRYP1 | Codale Part # 4354641
$16.61/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

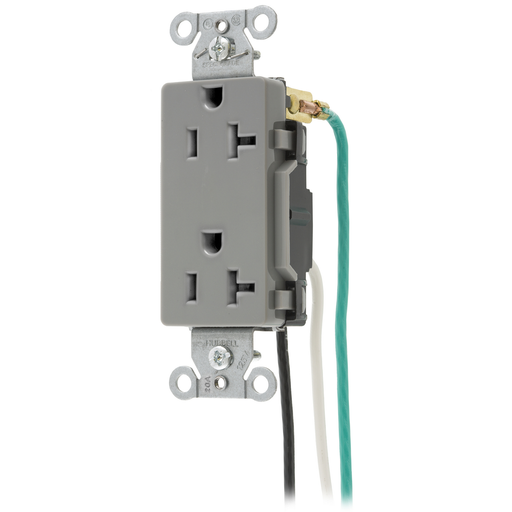

Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Gray, Pre-Wired 8" Solid Leads,.

Technical Information

Amperage
20 Amp
Applications
Commercial Specification Grade
Base Material
Nylon,Nylon
Conductor Size
12 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon,Nylon
Flamability Class
UL 94V-2
Grade
Commercial
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
1.32 in x 1.09 in x 3.28 in
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Style Line Decorator
Tc Connection
Solid Or Stranded Wire, 22 - 10 AWG (0.340 - 6.000 SQ-MM)
Type
Flexible Coupling
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585146393
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Commercial Specification Grade
Product UPC
78358514639
Weight
0.2 lb

Dimensions

Height
3.28 Inch
Length
1.32 Inch
Width
1.09 in

Certifications and Compliance

Country of Origin
China
Features
  • Fully insulated design with 8-inch solid wire leads
  • Aesthetic Style Line® decorator design
  • Smooth face
  • Triple wipe contacts
  • Self Grounding
