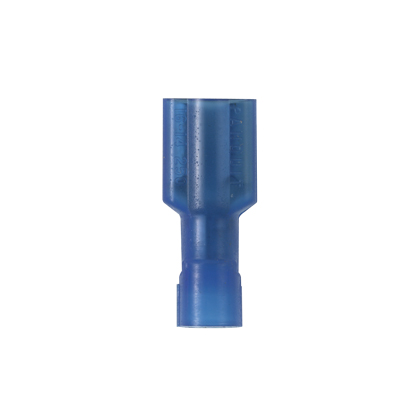

Panduit DNF14-250FI-M Nylon Fully Insulated Female Disconnect

Manufacturer: PANDUIT | Catalog # DNF14-250FI-M | Codale Part # 4355733
$993.80/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.94" (23.9 mm) long and 0.36" (9.1 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in boxes of 1000.

Technical Information

Barrel Type
Insulation Grip Sleeve
Color Coding
Blue
Conductor Size
14 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
Tc Connection
Funnel Entry
Temperature Rating
221 degrees F
Type
Loose-Piece
Voltage
600 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983761555
Color
Olive, Orange, Royal Blue and Yellow
Finish
Rust-Proof Plating, Vinyl Coated
Product Type
Terminals
Product UPC
07498376155
UNSPSC
39121409
Weight
3.4000 lb

Dimensions

Height
0.24 Inch
Length
0.94 Inch
Overall Length
0.94 in
Width
0.36 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
