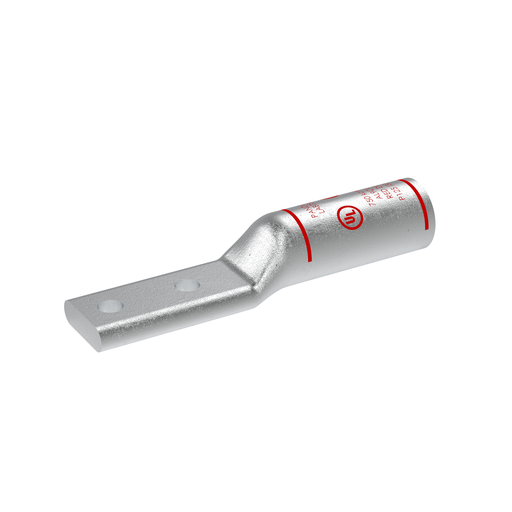

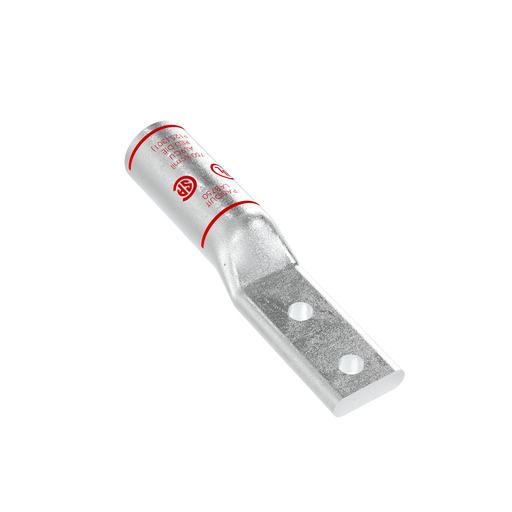

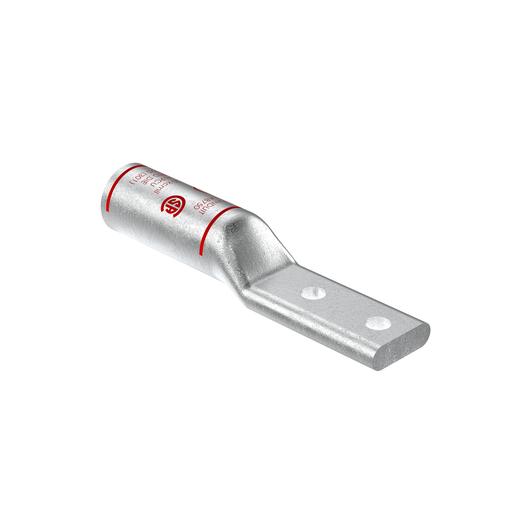

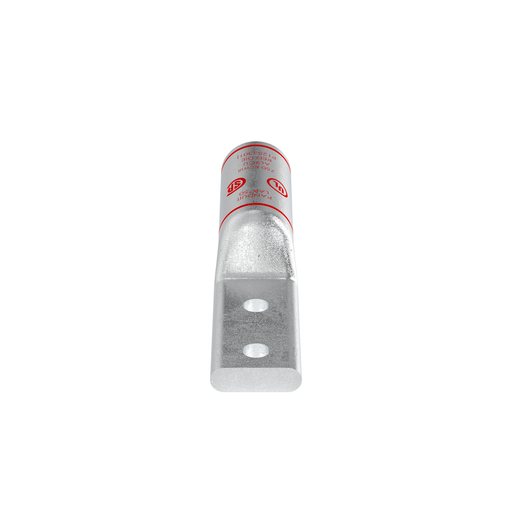

Panduit LAB750-12-1R Pan-Lug™ Aluminum 2 Hole Compression Lug

Manufacturer: PANDUIT | Catalog # LAB750-12-1R | Codale Part # 4356189
$16,820.47/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The LAB750-12-1R Aluminum Compression Connector Lug, two-hole, is manufactured from high conductivity thick wall aluminum with an enclosed barrel for harsh environments. The color-coded barrels are marked with Panduit and specified competitor die index numbers for proper crimp die selection. Factory pre-filled with joint compound andtin-plated to inhibit corrosion. cULus listed up to 35kV and temperature rated to 90.C.

Technical Information

Angle
Straight
Barrel Length
3.44 in
Color Coding
Red
Material
Aluminum
Number of Holes
2 Hole
Size
700 kcmil Code
Stud Size
42767.00 IN
Tongue Thickness
0.54 in
Tongue Type
Standard
Tongue Width
1.74 in
Type
Compression Connectors - Lugs
Voltage
35,000 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983069903
Color
Red
Product UPC
07498306990
Weight
1.1300 lb

Dimensions

Outer Diameter
1.59 in
Overall Length
8.25 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
India

Certifications & Compliance

Prop 65 Warning
No
