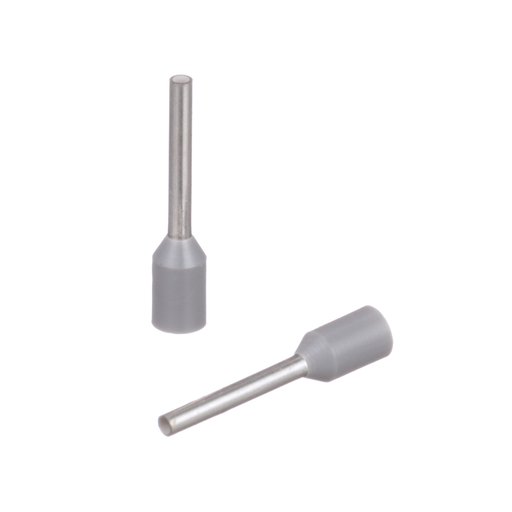

Panduit FSD72-8-D 26 AWG Single Wire Insulated Ferrule

Manufacturer: Panduit | Catalog # FSD72-8-D | Codale Part # 4356308
$536.13/m (1000 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
1,500 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The single wire DIN end sleeve insulated ferrule in gray has a funnel entry for faster insertion and lower installation cost. It is intended for American Wire Gauge (AWG) #26 (0.14 mm²) wire ferrules and supports a maximum wire insulated diameter of 0.07 (2.0 mm). The insulated ferrule is 0.41 (10.5 mm) long and has a wire strip length of 0.375 (9.5 mm). It comes in standard packages of 500.

Technical Information

Color Coding
NA
Conductor Size
26 AWG
Material
Copper
Max Operating Temperature
105 degrees C
Standard
IEC 60947; EN 60947; UL Listed; CSA Certified; DIN VDE 0600
Temperature Rating
221 degrees F
Type
Covered Single Wire Ferrule
Wire Size
0.14 mm

Packaging

Pkg Qty
500

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983763948
Color
Gray
Finish
Rust-Proof Plating, Vinyl Coated
Product UPC
07498376394
UNSPSC
39121409
Weight
0.1600 lb

Dimensions

Overall Length
0.49 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Germany

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: DIN 46228 Part 4, CSA C22.2 No. 291-14
Prop 65
  • No
