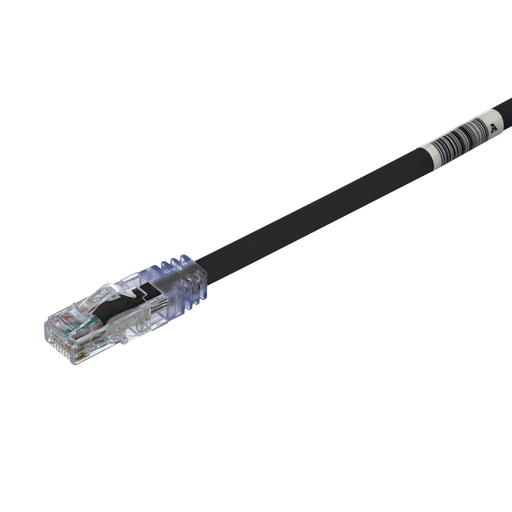

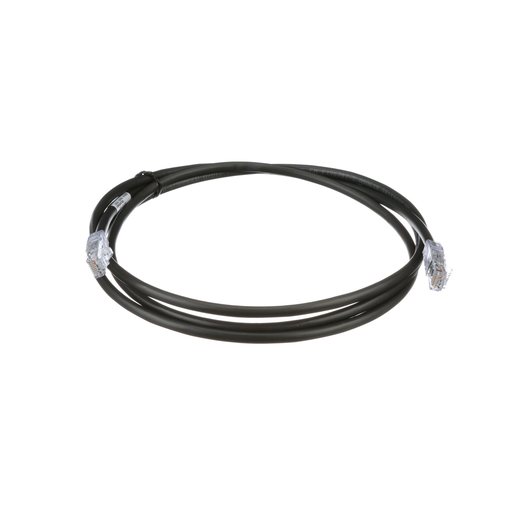

Product image for Panduit UTP6AX8BL Cat 6A 24 AWG UTP Copper Patch Cord, 8 ft, Black
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Panduit UTP6AX8BL Cat 6A 24 AWG UTP Copper Patch Cord, 8 ft, Black

Manufacturer: PANDUIT | Catalog # UTP6AX8BL | Codale Part # 4356529
$71.82/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet
The TX6A™ 10Gig UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, solid, CM cable with enhanced performance modular plugs. The patch cord offers a small 0.250 inch (6.4mm) cable diameter. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord’s slender strain relief boot provides easy access in high-density applications. The patch cord is 8 feet in length and black.

Technical Information

Applications
(1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing.
Boot Color
Clear
Conductor Type
Solid
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Temperature Rating
140 ??degrees F
Type
Patch Cord

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Net®

General Product Info

12-Digit UPC
613056771574
Color
Black
Jacket Material
Polyvinyl Chloride
Product UPC
61305677157

Dimensions

Outside Diameter
NA In.
Overall Length
8 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania

Certifications & Compliance

Prop 65 Warning
N
Prop 65
  • N
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
