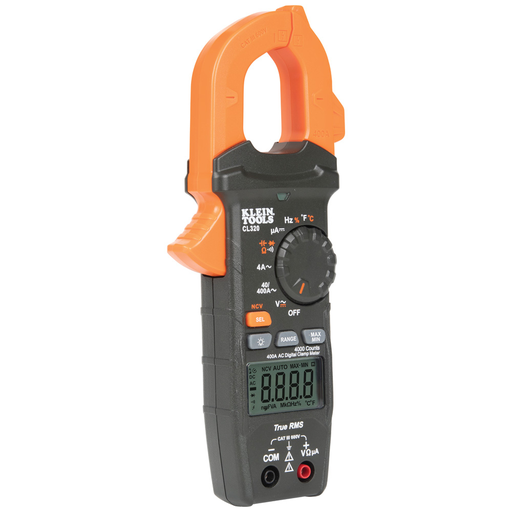

KLEIN CL320 HVAC Digital Clamp Mete

Manufacturer: Klein Tools | Catalog # CL320 | Codale Part # 4358511
$99.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet

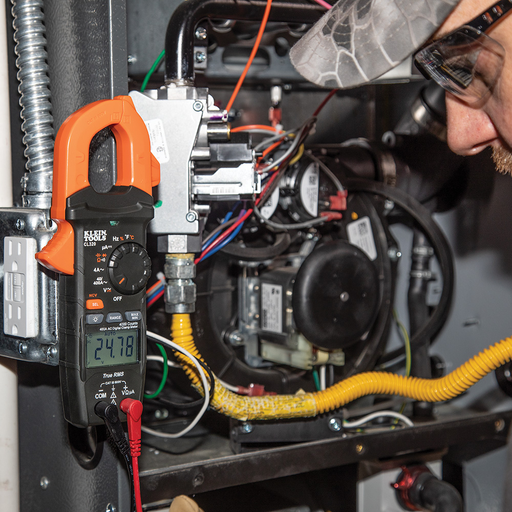

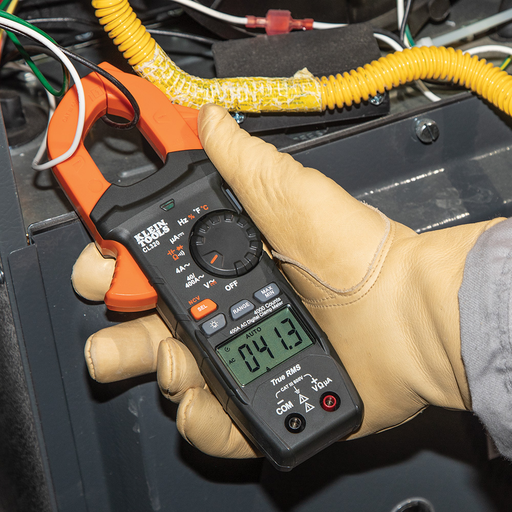

Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.

Technical Information

Applications
Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, Frequency, DC Micro-Amp, Capacitance, Duty Cycle, Diode Test, and Continuity via Test Leads, and Temperature with Thermocouple
Battery Type
(3) AAA
Current
400 Amp
Display Type
LCD
Frequency
10 Hz
Jaw Capacity
1.61 in
Material
ABS,Electronic Components
Resistance
40 m?
Type
TRMS
Voltage
600 Volt

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644692864
Product UPC
09264469286
Weight
11 oz

Dimensions

Depth
8.45 Inch
Height
1-1/2 Inch
Length
8.45 Inch
Overall Length
8.45 in
Width
3.5 in

Certifications and Compliance

Country of Origin
China
Features
  • Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
  • Non-contact voltage tester integrated into the clamp jaw
  • Backlit LCD for ease of viewing in low light
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
  • Measures temperature with a K-Type thermocouple probe
  • Auto-Range, Data Hold, and Max/Min value
  • Auto-power off after 10 minutes to conserve battery life

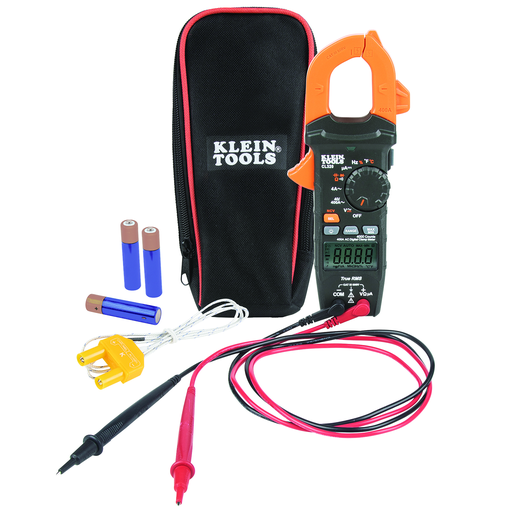

  • Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
  • Low battery indicator and easily accessible battery compartment
  • Built to withstand a 6.6-Foot (2 m) drop
  • CAT III 600V, Class 2, Double insulation safety rating
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
  • Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; HVAC Applications
Warnings
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not attempt to measure resistance or continuity on live circuits.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
  • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
Replaced By Products
  • 69028
  • 69401
  • 69410
