HWDK HBL69W76BK WATERTIGHT RECEP AS

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL69W76BK | Codale Part # 4360313
$285.61/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

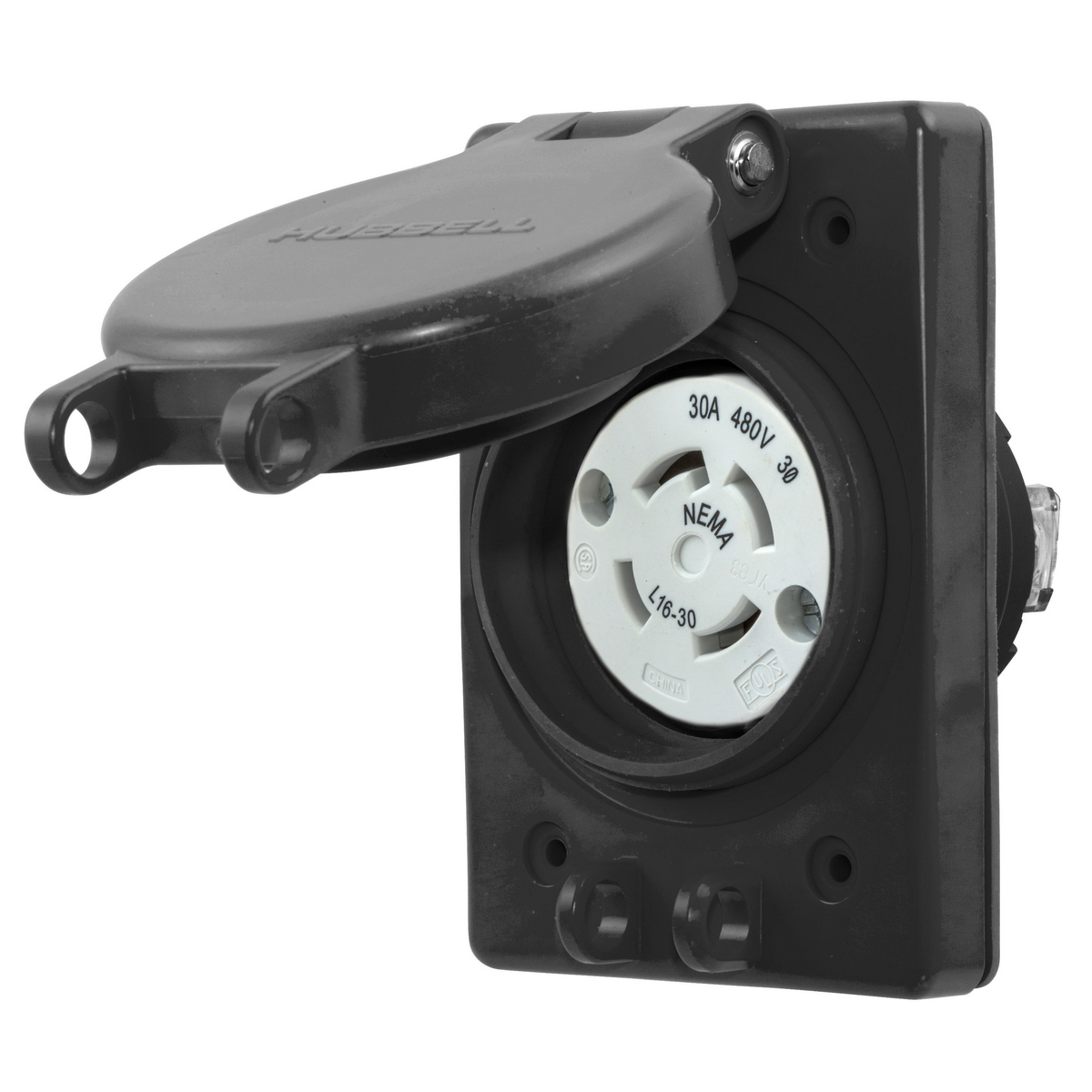

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-30R, Black

Technical Information

Amperage
30 Amp
Applications
Commercial Grade
Conductor Size
18-8 AWG
Current
30 Amp
Dielectric Strength
2,000V for 1 Minute
Material
Composite
NEMA
L16-30R
Number of Poles
3-3 Pole
Number of Wires
4,4
Size
4.56 in x 3.10 in x 2.92 in
Standard
ANSI Standards,IP69K In Use,Meets NEMA WD-1,WD-6
Tc Connection
Back and Side Wired Terminal Screws
Temperature Rating
-40 Degrees C to 70 Degrees C
Type
Receptacle
Voltage
480 Volt
Wattage
3750 Watt
Wire Size
18-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585511283
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Other Means
Product UPC
78358551128
Weight
0.6500 lb

Dimensions

Height
2.92 Inch
Length
4.56 Inch
Width
3.10 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points
