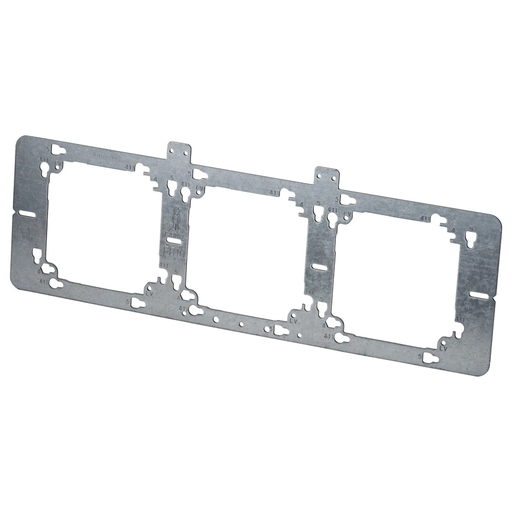

Caddy FB16 Flat Rigid Box Support

Manufacturer: Caddy Fasteners | Catalog # FB16 | Codale Part # 4361488
$1,864.57/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
The nVent CADDY FB16 Flat Rigid Box Support is rigid and completely flat with no offset, providing flexibility and strength within the stud wall. Regardless of the mud ring combination you're planning for, the FB16 bracket is able to accommodate and provide a mounting option. Because it is designed completely flat, you have multiple configuration options, limiting SKUs needed on a job, saving time. As part of the comprehensive line of nVent CADDY In-Wall products, the FB16 bracket delivers versatility and efficiency.

Technical Information

Applications
Datacom and Low Voltage; Electrical Fixing and Fastening
Material
Steel
Size
4"; 4 11/16"; 5"
Type
Between Stud Box Mounting Brackets

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
784805001775
Finish
Pregalvanized
Product UPC
78480500177
Weight
0.29 kg
Features
  • Created from one single piece of steel with no offset resulting in a completely flat bracket
  • Accepts any mud ring shape in either vertical or horizontal orientation
  • Extruded holes allow mounting of mud rings for both power and data applications
  • Stamped with A- and B-side markings that allow mounting for all box types and configurations no need for removal of screws simply flip and its ready to use
Certifications
  • UL ANSI/UL 514A
