Hubbell HBL7598 15 Amp 125 VAC 2-Pole 3-Wire NEMA ML-2R Stainless Steel Flanged Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7598 | Codale Part # 4362124
$123.57/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

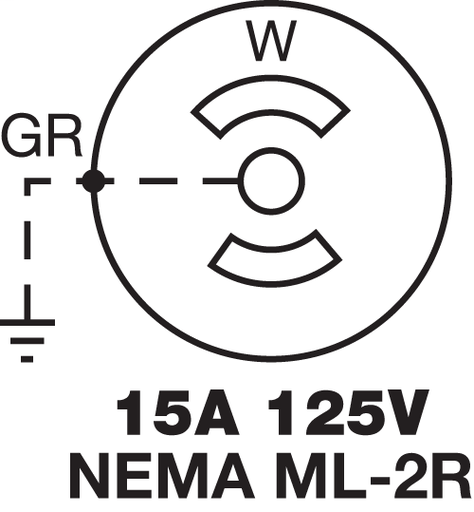

Locking Devices, Midget Twist-Lock®, Industrial, Flanged Receptacle, 15A 125V AC, 2-Pole 3-Wire Grounding, NEMA ML- 2R, Screw Terminal, Stainless Steel Flange.

Technical Information

Amperage
15 Amp
Applications
Heavy duty, high leverage diagonal cutter
Base Material
Phenolic
Conductor Size
18-14 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Stainless Steel
NEMA
ML-2R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Midget Locking Devices
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Screw, 6 Terminals
Type
Single, Standard, Insulgrip
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585237831
Color
Black,Orange,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358523783
Weight
0.10 lb

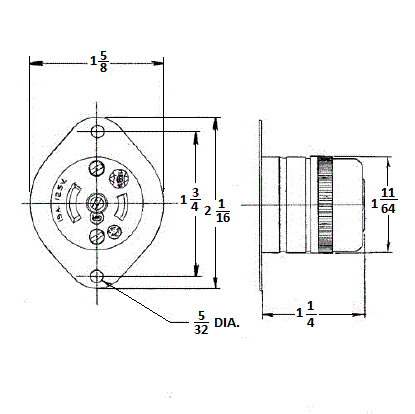

Dimensions

Height
1-1/4 Inch
Length
2.06 Inch
Width
1.62 in

Certifications and Compliance

Country of Origin
USA
Features
  • Stainless Steel mounting flange
  • High heat resistant phenolic base
  • Standard
