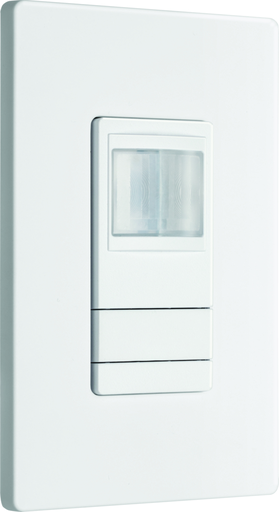

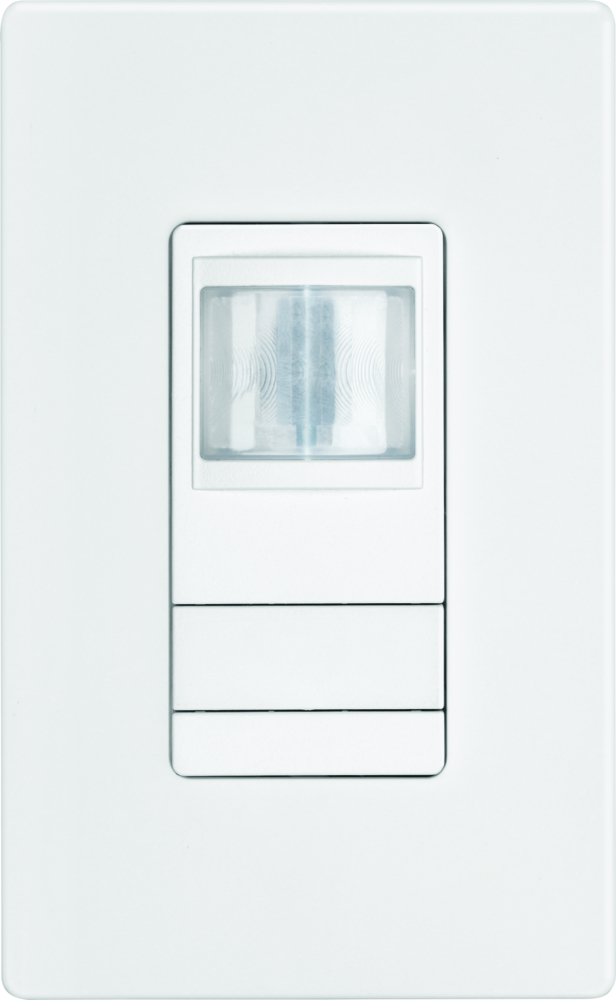

LIT WSXA WH Switch

Manufacturer: Lithonia Lighting | Catalog # WSXAWH | Codale Part # 4362192
$73.03/ea
ea
Log in or register to view your price, purchase history, and more!
58 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

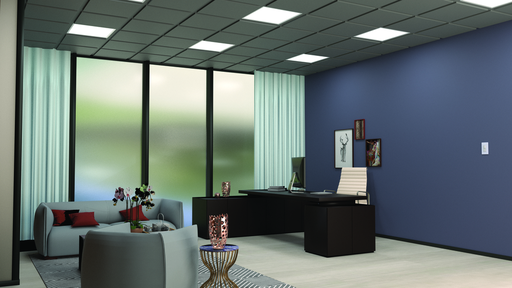

All WSXA Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private restrooms, closets, copy rooms, or any other small enclosed space

Technical Information

Applications
Behavioral Health,Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Retail,Sports And Recreation
Lamp Life
87,600 hr
Mounting Type
Surface
Size
1.63x1.68x2.74 IN
Standard
C-UL-USCA Title 24,CUL,ROHS
Type
Switch
Voltage
120 Volt

Manufacturer Information

Brand
SensorSwitch

General Product Info

12-Digit UPC
194994625902
Color
White
Environment
Indoor
Environmental Conditions
Indoor
Finish
Matte
Product Type
Switch
Product UPC
19499462590
Weight
0.471 lb

Dimensions

Height
2.74 Inch
Length
1.63 Inch
Warranty Length
5 yr
Width
1.68 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Application
  • Behavioral Health
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Retail
  • Sports and Recreation
Features
  • WIRING: WSXA Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection
  • COMPATIBILITY: Compatible w/LEDs, electronic & magnetic ballasts, CFLs, & incandescents
  • DIMMING: Compatible with 0-10V dimming luminaries
  • RATINGS: Energy Management Equipment, UL916 (E167435)
  • PROTECTION: Mis-wire Protection - interchangeable line and load wires prevent damage to device if line voltage is mis-wired to 0-10V wires
  • POWER: Device accommodates powering over ground or neutral connection (patent pending) Ultra-low current leakage (<0.5 mA) when connected via ground
  • PROGRAMMABLE: Push-button programmable without removing cover plate - adjustable time delays & operating modes
  • MOUNTING: Single-Gang Box
  • WARRANTY: 5-year limited warranty
Mounting
  • Surface
Standard
  • cUL
  • C-UL-USCA Title 24
  • ROHS
