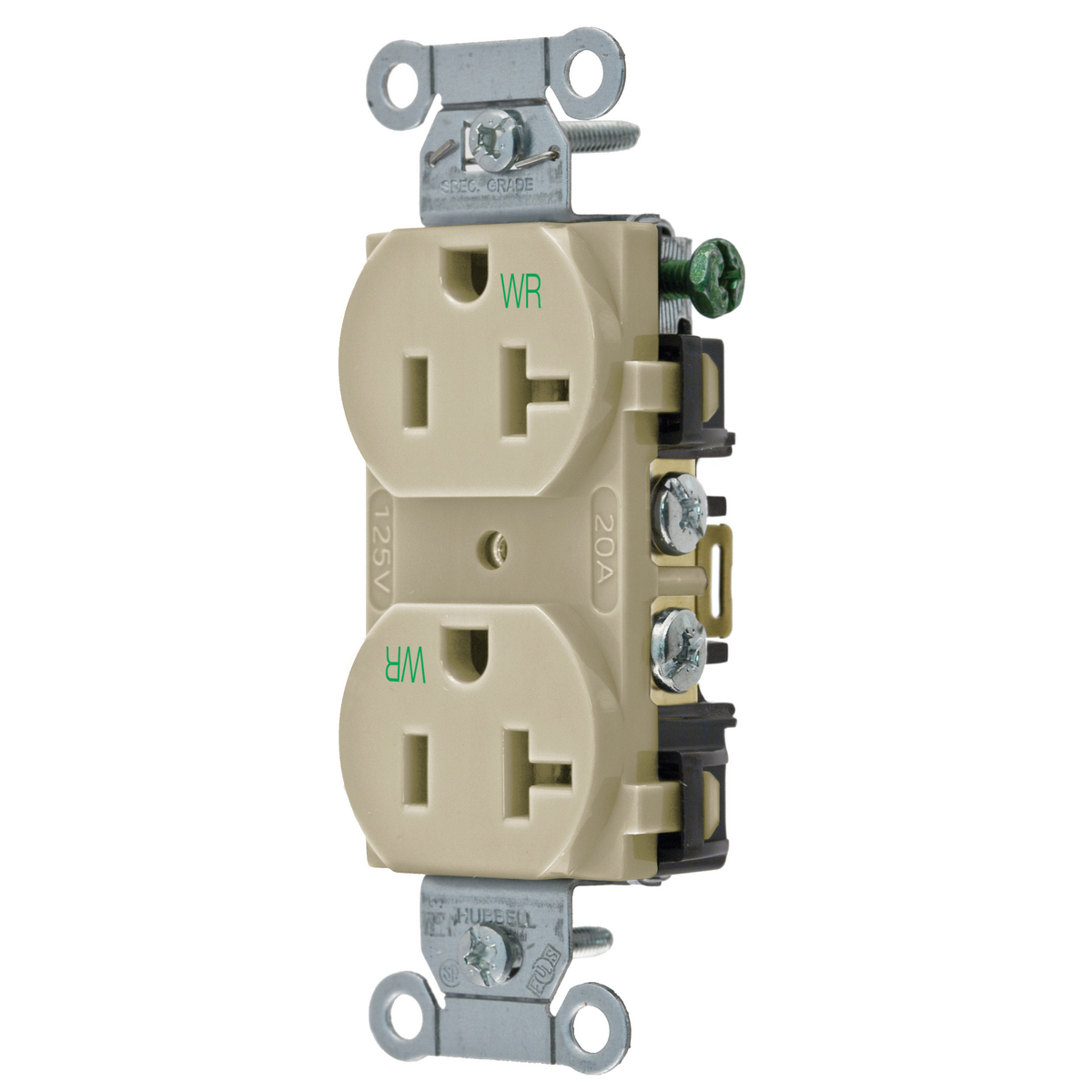

Product image for Hubbell BR20IWR 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Ivory Nylon Straight Blade Duplex Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell BR20IWR 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Ivory Nylon Straight Blade Duplex Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # BR20IWR | Codale Part # 4366210
$7.85/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Weather-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5- 20R, Ivory, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial
Grounding
Self
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Style
Smooth Face
Tc Connection
Back & Side Wired
Type
Traditional, Weather Resistant
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585144658
Color
Ivory
Environmental Conditions
Weatherproofing Accessory
Product Series
Commercial Specification Grade
Product UPC
78358514465
Weight
0.15 lb

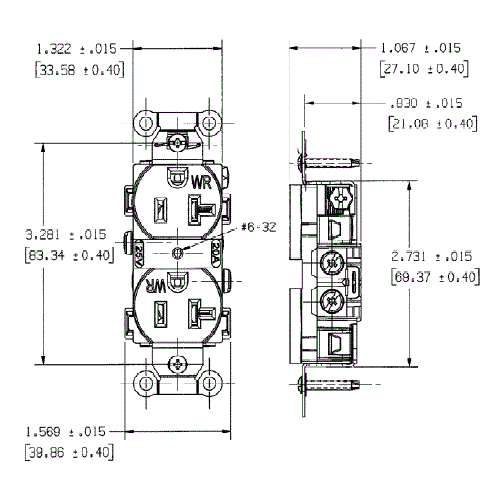

Dimensions

Height
3.28 Inch
Length
1.32 Inch
Width
1.06 in

Certifications and Compliance

Country of Origin
China
Features
  • Weather-resistance complies with national electrical code requirements
  • Smooth face
  • Wrap-around galvanized steel strap
  • Triple wipe contacts
  • Weather Resistant- Self Grounding
