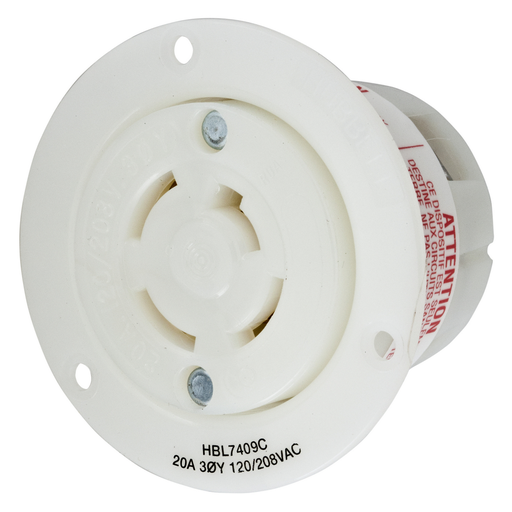

Hubbell HBL7409C Locking Flanged-Receptacle, 4P4W, 20A 120/208V, WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7409C | Codale Part # 4366605
$244.11/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non- Grounding, Non-NEMA, Screw Terminal, Nylon casing, Back wired, White.

Technical Information

Amperage
20 Amp
Applications
Insulgrip
Conductor Size
16-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon
Number of Phases
3 Phase
Number of Poles
4-4 Pole
Number of Wires
4,4
Operating Temperature
-40 degrees C
Size
Standard Sized
Tc Connection
Screw Terminal
Type
Single
Voltage
120/208 Volt
Wattage
4160 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock

General Product Info

12-Digit UPC
783585037554
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358503755
Weight
0.4 lb

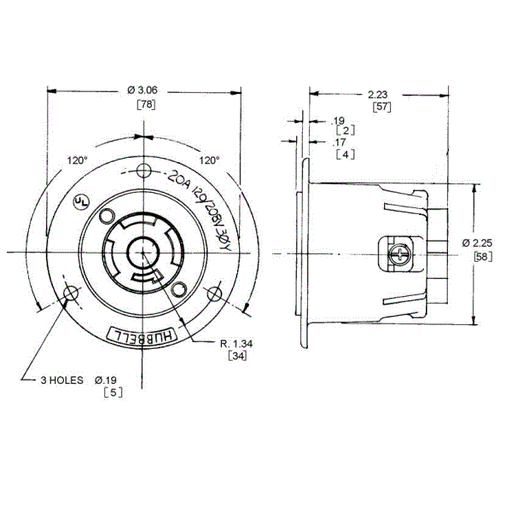

Dimensions

Height
2.4 Inch
Length
3.06 Inch
Width
3.06 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard
