Leviton 2440 20 Amp 120/208 Volt NEMA L18-20R 4-Pole 4 Wire Flush Mounting Industrial Grade Black Locking Receptacle

Manufacturer: Leviton | Catalog # 2440 | Codale Part # 4369931
$95.91/ea
ea
Log in or register to view your price, purchase history, and more!
29 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20 Amp, 120/208 Volt 3-Phase Y, NEMA L18-20R, 4P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Non-Grounding, V-0-MAX - BLACK

Technical Information

Amperage
20 Amp
Applications
For Industrial use
Base Material
Valox,Valox
Body Material
Nylon
Conductor Size
14-8 AWG
Connection Type
Back and Side Wired
Contact Material
Brass,Brass
Cover Material
Valox
Device Type
Locking Receptacle
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Ultramid
Flamability Class
Rated V-0 Per UL 94
Grade
Industrial
Grounding
Non-Grounding
Horsepower
2 hp
Material
PBT
Mounting Type
Wall Box/Flush
NEMA
WD-1
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 to 60 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Material
Brass,Brass,Chromated Brass,Chromated Brass
Screw Size
10-32,8-32
Size
3.63 H x 1.69 W x 1.31 D IN
Standard
ANSI C-73
Tc Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire,Side Wire
Type
Flush Mount Locking Receptacle
Voltage
120/208 Volt
Wire Count
4
Wire Size
14-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477045343
Color
Black
Environment
Corrosive
Environmental Conditions
Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 per UL94)
Product UPC
07847704534

Dimensions

Warranty Length
Lifetime Limited,Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
CSA
C22.2 No. 42
Features
  • Levitons Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
NEMA

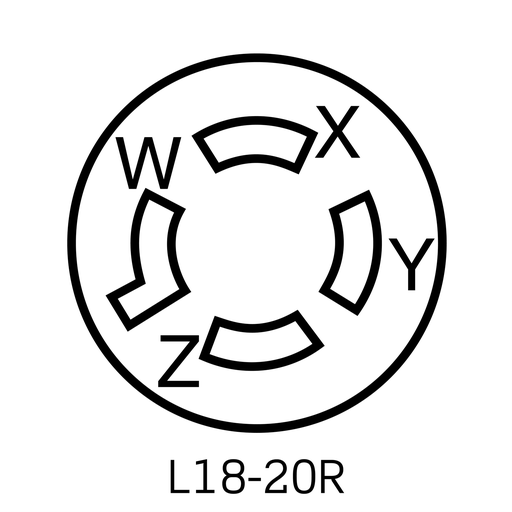

  • L18-20R
