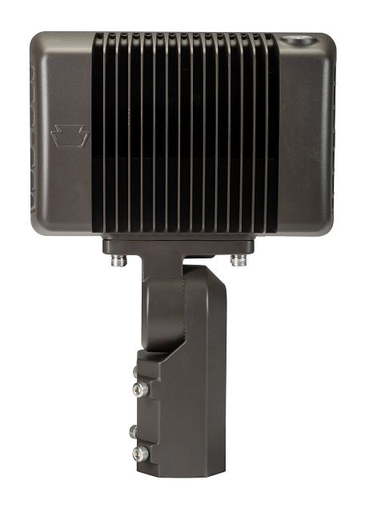

Product image for Keystone KT-FLED100-R1A-UNV-8CSB-VDIM Compact 100W General Purpose LED Flood Light, Selectable Lumens & CCT, 0-10V Dimming, Universal Mounting - Bronze
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

Email

Keystone KT-FLED100-R1A-UNV-8CSB-VDIM Compact 100W General Purpose LED Flood Light, Selectable Lumens & CCT, 0-10V Dimming, Universal Mounting - Bronze

Manufacturer: Keystone Technologies | Catalog # KT-FLED100-R1A-UNV-8CSB-VDIM | Codale Part # 4370117

$280.48/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.

Compact 60W General-Purpose LED Floodlight | 120-277V Input | 3000-5000K | Bronze Housing | Universal Mount

Applications: Building or ground mount application for outdoor illumination - landscapes, display signage, loading docks, building facades, pathways, parking areas, and other general site lighting requirements

  • Keystone Color Select technology 3000K/4000K/5000K
  • Uniform, wide flood design - NEMA 7H × 7V distribution pattern
  • Heavy-duty slip fitter mount and trunnion mount options included
  • Heavy-duty, die cast aluminum housing featuring built-in glare visor and tempered glass lens
  • Powered by Keystone LED driver 0-10V dimming 10% min and with 18-inch input cable, pre-stripped
  • Built-in dusk-to-dawn photocell behind translucent 3/4-inch threaded plug with anti-yellowing agent
  • Ambient operating temperature: -40ºC/-40ºF to 45ºC/113ºF
  • Power Factor: >0.95 and THD: <20%
  • Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
  • Fixture impact rating IK07, UL listed for wet locations, IP65
  • LED chip lifetime: L70 >100,000 hrs @ 25ºC/77ºF ambient fixture temp

Technical Information

Lumens
13,400 Lumen
Type
Flood Light
Voltage
120 Volt
Wattage
75 Watt

Manufacturer Information

Brand
Keystone Technologies

General Product Info

12-Digit UPC
843654129006
Product UPC
84365412900
Weight
10.14 lb

Dimensions

Warranty Length
10
