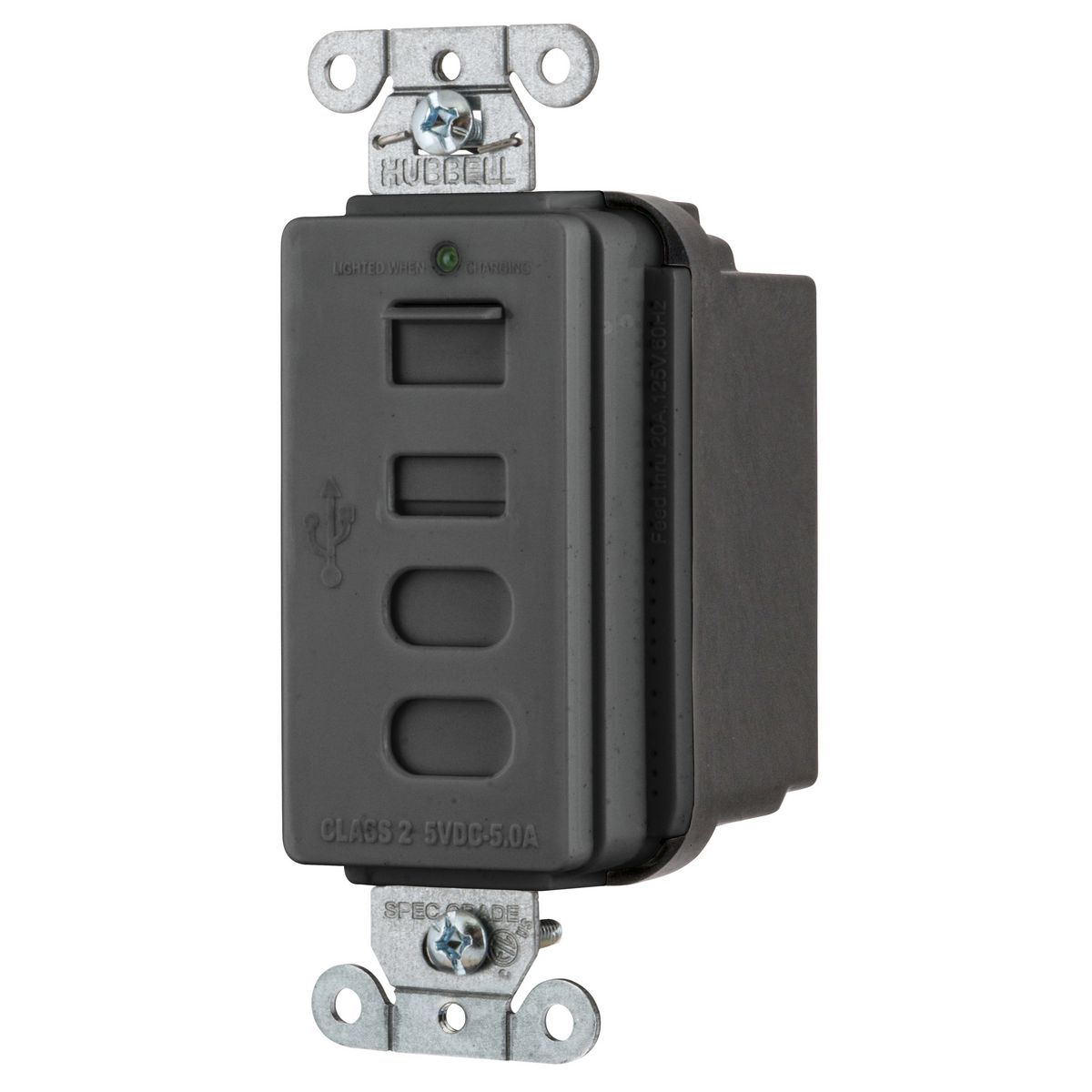

Product image for HWDK USB4ACBK USB CHRGR 4 PORT 5AMP
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

HWDK USB4ACBK USB CHRGR 4 PORT 5AMP

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # USB4ACBK | Codale Part # 4370514
$67.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
This device will communicate with mobile devices to determine what voltage is required and provide 5V or 9V, based on the make and model. The two USB Type A ports offer high power at 5 volts.

Technical Information

Amperage
5 Amp
Applications
USB Charging
Conductor Size
14-10 AWG
Current
5 Amp
Material
Thermoplastic
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard Sized Product
Style
Style Line Decorator
Temperature Rating
Maximum continuous 75degrees C; minimum -40degrees C (w/o impact)
Type
USB Charger
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
USB Chargers

General Product Info

12-Digit UPC
883778308949
Color
Black
Product Series
4 Port Outlet
Product UPC
88377830894
Weight
0.3500 lb

Dimensions

Height
1.9 Inch
Length
4.2 Inch
Width
2.2 in

Certifications and Compliance

Country of Origin
China
Features
  • Four USB ports 5 Amp, 2 Type A and 2 Type-C USB, 5V DC, class 2.0
  • Fast charge enabled modulates up to 9 volts
  • Switch activated port door
  • when open enables power
  • when closed, all power is switched off, for a zero no-load draw
  • Green LED indicator to show USB power available
  • Compatible with USB 1.1/2.0/3.0 devices, including Apple® products
