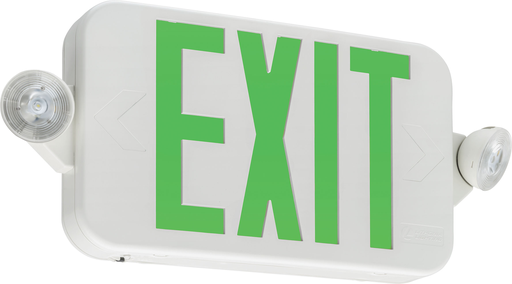

Lithonia ECRG-RD-M6 LED Emergency Light/Exit Combo Unit, Switchable Red/Green Letters, Round Lamp Heads, Thermoplastic, 120V-277V

Manufacturer: Lithonia Lighting | Catalog # ECRGRDM6 | Codale Part # 4371897
$91.33/ea
ea
Log in or register to view your price, purchase history, and more!
128 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
The Lithonia Lighting Basics™ ECRG, is a combination of exit and emergency lighting. The ECRG is ideal for safely illuminating the path of egress above-the-door in small spaces at lower mounting heights while providing 90 minutes of emergency power. Contains ability to switch between red and green letters.

Technical Information

Applications
Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Retail
Color Rendering Index
80
Color Temperature
6200 K
Correlated Color Temp
6200 K
Lumens
85 Lumen
Material
Thermoplastic
Mounting Type
Surface
Size

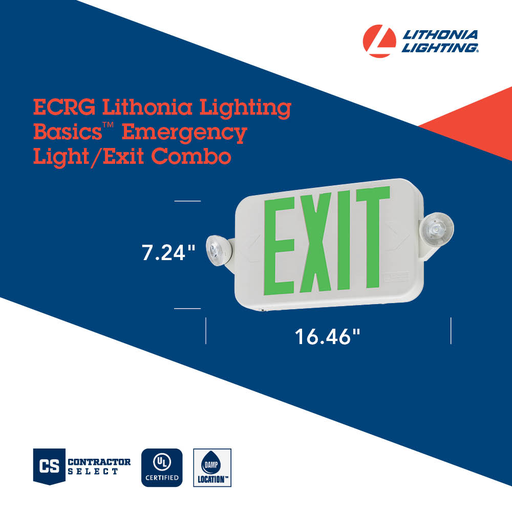

16.46x2.05x7.24 IN
Type
Emergency Exit Sign
Voltage
120 Volt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
194994900412
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Textured
Fixture Type
Emergency Exit Sign
Product UPC
19499490041
Shape
Round
Weight
1.9 lb

Dimensions

Height
7.24 Inch
Length
16.46 Inch
Width
2.05 in

Certifications and Compliance

Country of Origin
Vietnam,Vietnam
Standards
  • NFPA 101
  • NFPA 70
  • ULCA Title 20
Features
  • CUSTOMIZATION: The EXRG LED Exit Sign has an internal switch for red or green color selection
  • HOUSING: Features bright white thermoplastic housing; fully assembled single-face exit comes with an extra faceplate and red and green panel inserts
  • VOLTAGE: Dual-voltage 120/277, 60Hz
  • RATINGS / LISTINGS: UL Listed, meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), FCC Title 47, Part 15, Subpart B and OSHA, Indoor damp location 50°F to 104°F (10°C to 40°C) listed
  • INSTALL / MOUNTING: Top, side and back mount options; Mounting pattern on canopy (top and side mount) and back plate (back mount) fits most standard size junction boxes
  • HOURS OF LIFE: The typical life of the LED lamp is 10 years
  • DESIGN FEATURE: Provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet code required emergency lighting
  • BATTERY: 3.6V maintenance-free, rechargeable, nickel metal hydride
  • WARRANTY: 2-Year Limited Warranty
  • DIMENSIONS: 16.5in x 2.05in x 7.25in
Applications
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Retail
