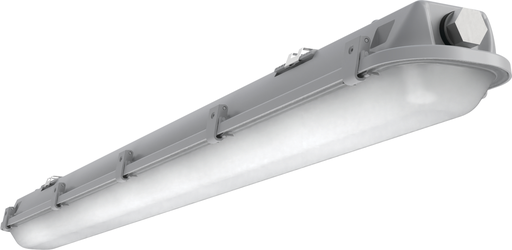

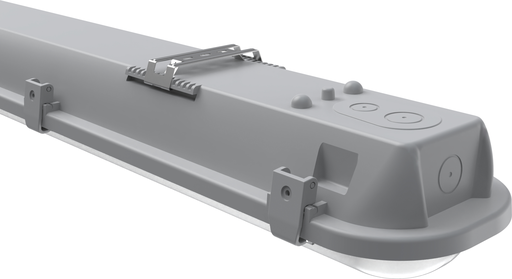

Product image for LITH CSVT L48 5000LM MVOLT 40K 80CR
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

LITH CSVT L48 5000LM MVOLT 40K 80CR

Manufacturer: Lithonia Lighting | Catalog # CSVTL485000LMMVOLT40K80CRI | Codale Part # 4373480
$290.42/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The CSVT™ by Lithonia Lighting is built on the technological framework of the CSS, providing greater customization and performance for everyday spaces. And with the ability to switch lumens and adjust color temperature in one fixture, the CSVT can easily be adapted to the needs of each project . 9 different variations within the same SKU!

Technical Information

Aperture Size
4 ft
Applications
Manufacturing,Parking Garage,Sports And Recreation,Warehouses
Average Rated Life
54,000 hr
Color Rendering Index
80
Color Temperature
4000 K
Correlated Color Temp
4000 K
Dimmable?
Yes
Lamp Type
LED
Lens Color
White
Lens Material
Polycarbonate
Lumens
5,000 Lumen
Material
Polycarbonate
Mounting Type
Pendant,Surface,Suspended
Power Source
Hardwired
Size
50.3x5.4x3.8 IN
Standard
CSA,NOMDLC Standard
Style
Traditional
Type
Low Bay
Voltage
120 Volt
Wattage
47.6 Watt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
194995069408
Color
Gray
Construction
New Construction,Remodel
Environment
Demanding,Indoor,Outdoor
Environmental Conditions
Demanding,Indoor,Outdoor
Fixture Type
Low Bay
Product Type
Low Bay
Product UPC
19499506940
Shape
Rectangle
Weight
9 lb

Dimensions

Height
3.8 Inch
Length
50.3 Inch
Warranty Length
5 yr
Width
5.4 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Features
  • TECHNOLOGY: Ideal for damp/wet locations such as outdoor venues, canopies and locker rooms. Not for use or installation in direct outdoor sunlight
  • ENERGY SAVINGS: High Efficiency LEDs meet DLC Standard
  • DIMMING: 0-10V Dimming standard
  • RATINGS: CSA Certified to UL & C-UL Standards for wet location, IP65 and IP66 rated, NSF splash zone rated
  • VOLTAGE: MVOLT (120-277V) & 347V
  • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 120,000 hours (L70>120,000)
  • INSTALLATION: Surface (wall, ceiling) or suspended (chain, cable) using standard brackets
  • BATTERY: This product does not include an emergency back up supply
  • WARRANTY: 5-year limited warranty
Mounting
  • Pendant
  • Surface
  • Suspended
Application
  • Manufacturing
  • Parking Garage
  • Sports and Recreation
  • Warehouses
Standard
  • CSA
  • NOMDLC Standard
