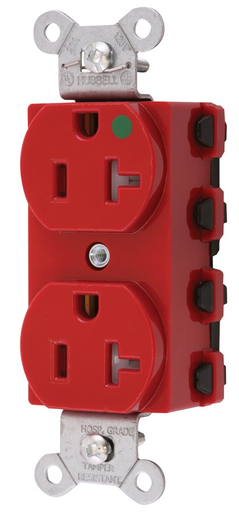

HCI SNAP8300RTR SNAP2CONNECT DPLX H

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP8300RTR | Codale Part # 4373569
$29.74/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Hospital grade, tamper-resistant, smooth face

Technical Information

Amperage
20 Amp
Base Material
PBT,PBT
Contact Material
Brass
Face Material
Nylon,Nylon
Flamability Class
UL 94V-2
Grade
Hospital
Number of Poles
2 Pole
Tamper Resistant?
Yes
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585193410
Color
Red,Red
Product UPC
78358519341
Weight
0.2000 lb
Listings
  • Certified to CSA, C22.2, No. 42 File 285
  • UL Listed to UL498 File No. E2186
  • NEMA WD-6 Compliant
  • Fed. Spec. W-C-596
Features
  • Fully insulated design
  • Audible SNAP, indicates solid connection
  • Tamper-resistant shutter complies with national electrical code requirements
  • Reduces installation time
  • 20A
  • 125V
  • 2 Pole
  • 3 Wire Grounding
