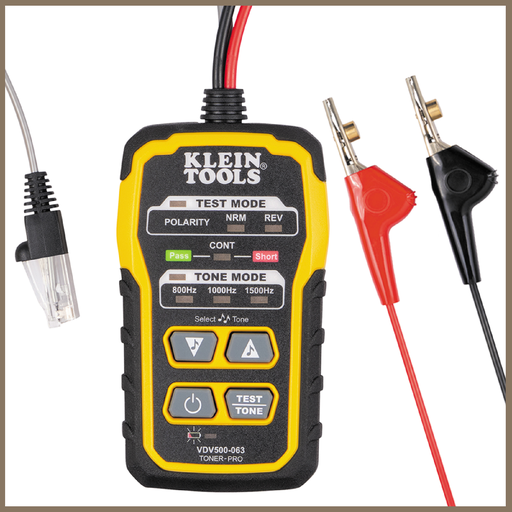

Klein VDV500-063 Toner-PRO Tone Generator

Manufacturer: Klein Tools | Catalog # VDV500-063 | Codale Part # 4373604
$59.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet

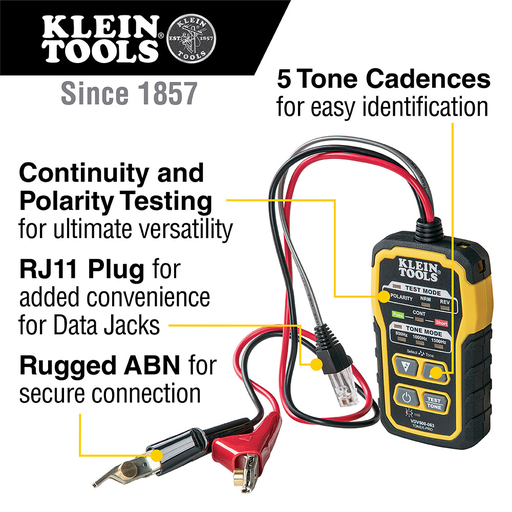

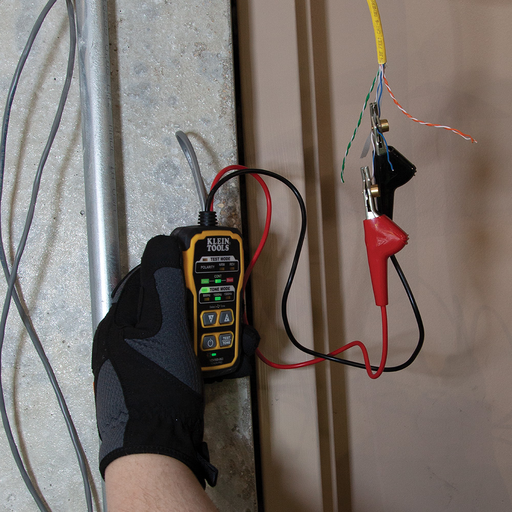

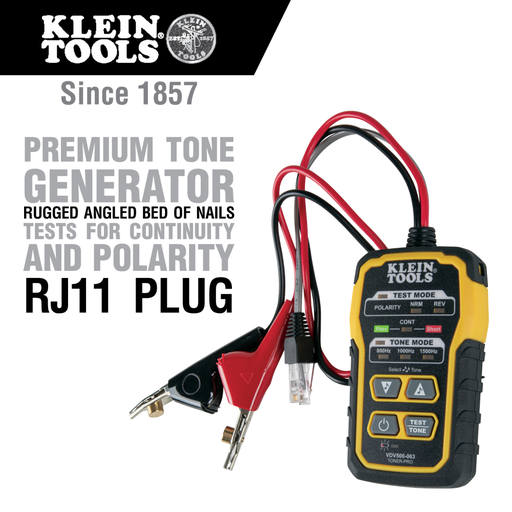

This tone generator helps with wire identification, wire tracing and wire pair identification. The tone generator provides five distinct tones for exact pair identification and features angled bed-of-nails (ABN) clips to securely attach to wires. An RJ11 plug easily connects to telephone or RJ45 data jacks to tone wire pair. Check for continuity and polarity with results indicated by clearly labeled, easy-to-read LEDs.

Technical Information

Applications
For Wire Toning
Battery Life
120 hr
Battery Type
4 X AAA
Material
Metal
Number of Rows
3
Type
Auto-Power Off, RJ45 and RJ11 Wire Tracer, Low Battery Indicator

Manufacturer Information

Brand
Klein Tools, Inc.
Sub Brand
Toner-PRO

General Product Info

12-Digit UPC
092644692338
Product UPC
09264469233
Used With
VDV500-123 Probe-Pro Tracing Probe
Weight
0.400 lb

Dimensions

Depth
2-1/2 Inch
Height
4-1/4 Inch
Length
2-1/2 Inch
Overall Length
2.5 in
Width
1 in

Certifications and Compliance

Country of Origin
China
Features
  • Professional grade tone generator for non-active wiring
  • For use with Probe-Pro Tracing Probe (VDV500-123) required (sold separately)
  • Five distinct tone cadences
  • Rugged Angled Bed of Nails (ABN) clips securely attach to wires
  • RJ11 plug easily connects to telephone or RJ45 data jacks to tone individual conductors or wire pairs
  • Tests for continuity and polarity with response displayed on clearly labeled, easy-to-read LEDs
  • Auto Power-Off and Low Battery Indicator
  • Loop for a lanyard
  • (4) AAA Batteries included
  • Angled Bed of Nails (ABN) Teleco Clips; Lanyard Loop
  • Professional grade analog tone generator for open-ended, non-active wiring
Warnings
  • Carefully read all instructions.
  • Read all safety information before using.
  • Do NOT use on energized circuits.
  • Do not use instruments if they are wet, as it could pose a shock hazard.
  • Do not use instruments if they are damaged in any way.
  • Turn off instruments and disconnect all test leads before attempting to replace batteries.
  • Do not open the case, other than the battery compartment
  • The battery door must be in place and secure before you operate.
