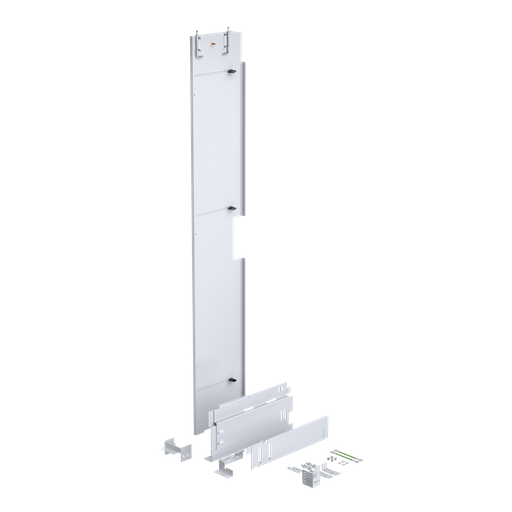

Product image for NVENT HOF A62BP18 Barrier Panel 62x
Image thumbnail 0
Image thumbnail 1
Email

NVENT HOF A62BP18 Barrier Panel 62x

Manufacturer: nVent Hoffman | Catalog # A62BP18 | Codale Part # 4376480
$1,185.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The universal barrier panel provides a Type 1 solution to help reduce the risk of electrical hazards such as electrical shock or arc flash by adding a physical barrier inside an enclosure to separate the high voltage from the low voltage components. Designed to fit in unibody free-stand or floor-mount enclosures with centerpost, the barrier helps minimize the incidental contact or exposure to high voltage components while accessing the low voltage equipment such as controls and programming devices.

Technical Information

Applications
Controls and Drives; Power Distribution
Material
Steel
Size
61.80 x 17.80 x 2.60 inch
Type
Industrial Panels and Panel Accessories

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510383930
Color
White
Finish
Powder Coated
Product UPC
78351038393
Weight
28.55 lb

Dimensions

Height
3 Inch
Length
53-1/2 Inch
Thickness
1.9 mm
Width
12.25 in
Features
  • Meet UL Type 1 construction requirements when installed in an nVent HOFFMAN enclosure
  • Top and bottom barrier plates included to provide a full-depth separation
  • Main barrier plate has a 6-inch extender to add flexibility when mounting
  • Quick release hinges used to secure the main barrier plate to the top barrier plate to simplify installation
  • Ground stud on the main barrier plate
  • Designed to fit the following bulletins: A21 (excluding CPX enclosures), A28M2, A28MM, A4L3D, A4L3, A4L, A21S4 (excluding CPX enclosures), A28S4, A4S2, A4S3, A4SL
  • Mount to the welded or removable centerpost of an enclosure; the barrier panel cannot be installed in free-stand or floor-mount enclosures without a centerpost
  • Mounting hardware and brackets included
