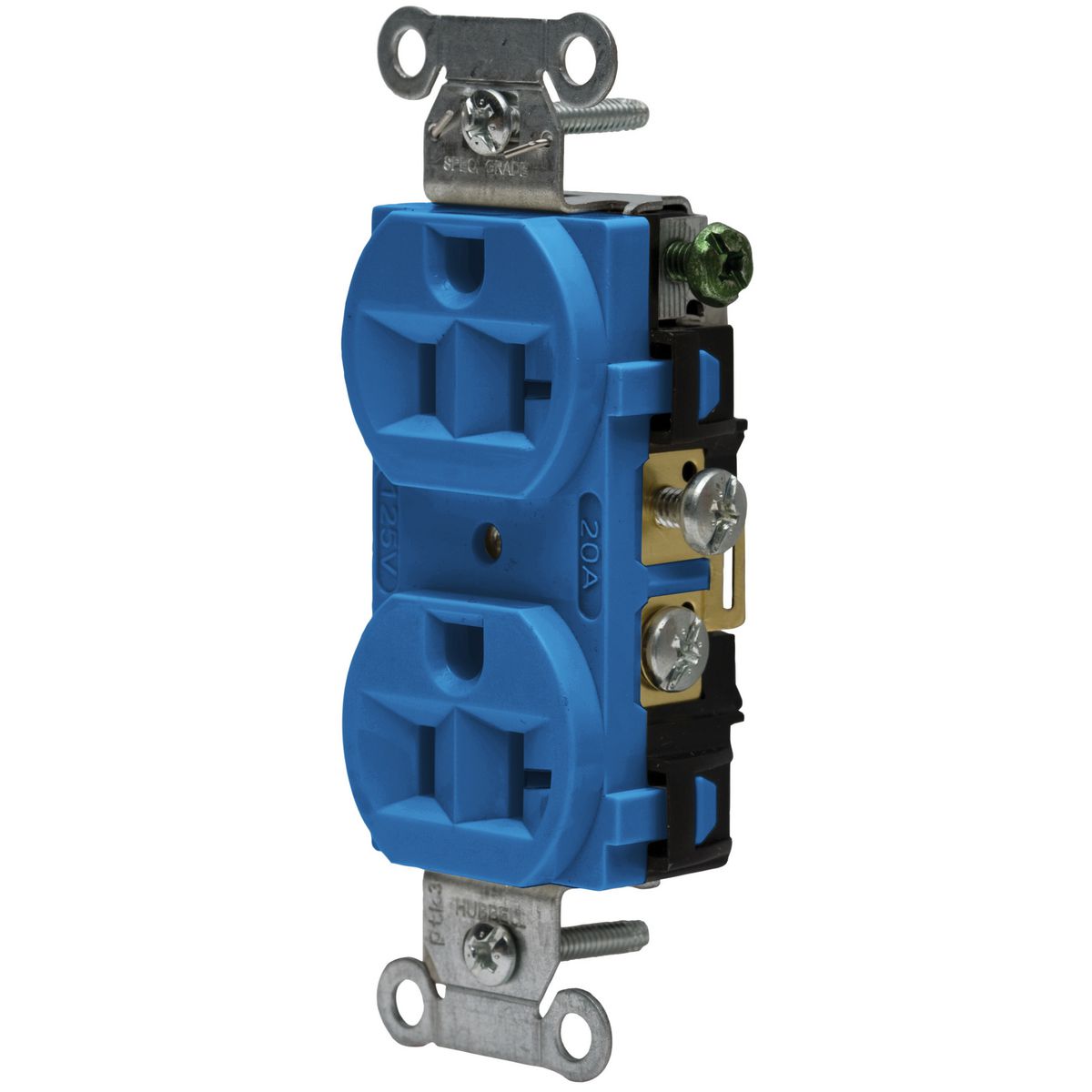

Product image for HWDK 5362ABL RCPT, DUP SB, HUBPRO,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

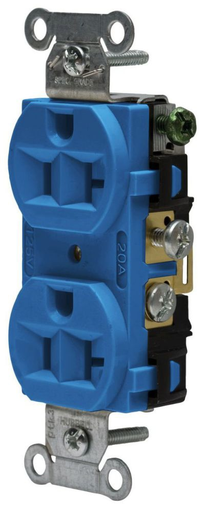

HWDK 5362ABL RCPT, DUP SB, HUBPRO,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 5362ABL | Codale Part # 4376541
$4.24/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Straight Blade Receptacle

Technical Information

Amperage
20 Amp
Applications
Hubbell-Pro Heavy Duty
Conductor Size
12-10 AWG
Current
20 Amp
Grade
Heavy Duty Commercial,Industrial
Grounding
Self-Grounding
Material
Composite
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard Sized Product
Temperature Rating
Maximum continuous 75?degrees C; minimum -40?degrees C (w/o impact)
Type
Standard Duplex
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585531236
Color
Blue
Environmental Conditions
Indoor Dry unless protected by additional means
Product UPC
78358553123
Weight
0.2000 lb

Dimensions

Height
1.1 Inch
Length
4.2 Inch
Width
1.600 in

Certifications and Compliance

Country of Origin
China
Features
  • Easy Access Split Circuit Tab
  • Finder Groove Face
  • Triple Wipe Contacts
  • Wrap Around Galvanized Steel Strap
Additional Information
  • Power Rating 1875 Watt
  • Dielectric Voltage 2000 Volt
  • Wire Size 12 to 10 AWG
  • Temperature Rating -40 to 75 Deg C
  • Applicable Standard Federal Specification W-C-596
