Lutron ST-PRO-N-WH Sunnata Pro Dimmer, White

Manufacturer: Lutron Electronics | Catalog # ST-PRO-N-WH | Codale Part # 4376646
$139.06/ea
ea
Log in or register to view your price, purchase history, and more!
9 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Lutron Sunnata PRO LED+ Touch Dimmer Switch with Phase Selectable Dimming for LED, MLV, ELV, and Incandescent/Halogen lighting, White

Technical Information

Applications
Lighting
Material
Metal
Power Rating
250 W LED/CFL, 500 W ELV/Incandescent/Halogen, 400 VA MLV
Type
PRO LED+ Phase Selectable

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Sunnata

General Product Info

12-Digit UPC
784276286114
Color
White
Finish
Gloss
Product UPC
78427628611
Weight
0.2650 lb

Dimensions

Depth
2.56 Inch
Length
4.69 Inch
Width
2.94 in
Features
  • Includes (1) Sunnata PRO LED+ Touch dimmer switch; Gloss finish
  • Works with up to 250W of dimmable LEDs, 500W ELV/Incandescent/Halogen bulbs, or 400VA MLV; Neutral wire required
  • Phase Selectable: Compatible with electronic low voltage (ELV) and magnetic low voltage (MLV) applications, as well as LEDs, incandescent, and halogen bulbs
  • Touch or swipe the white light bar to brighten/dim your lights; this lightbar also doubles as a locator light to help find the dimmer switch in the dark

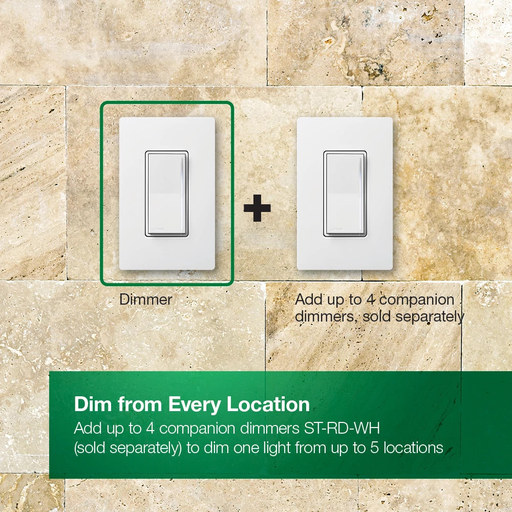

  • Dim from every location by adding Sunnata PRO companion dimmer switches (ST-RD-xx, sold separately); Add up to four PRO companion dimmers to dim from up to five locations (Companion dimmers will match the settings and lightbar status of the main dimmer
  • Utilizes screw terminals; not for use with 3-way mechanical switches
  • MyLevel Personalization gives you the ability to customize your Sunnata PRO LED+ dimmer; Adjust the brightness of the light bar, set high- and low-end trims, adjust or disable the locator light, as well as set as favorite light level
  • Press and hold Off button for 1 second to activate a 30 second delayed fade-to-off
  • Fits large designer-style openings; Available in in 20+ colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
Standards and Certifications
  • UL
  • CSA
  • NOM
  • FCC
  • IC
  • NEMA SSL-7A Compliant
  • UL Listed
