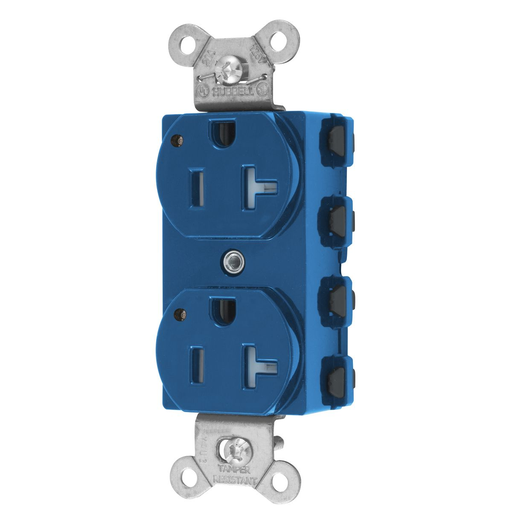

Product image for HWDK SNAP5362BLLTRA S-CONNECT DUP 2
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HWDK SNAP5362BLLTRA S-CONNECT DUP 2

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP5362BLLTRA | Codale Part # 4377543
$33.78/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Duplex, SNAPConnect®, Tamper Resistant, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nylon, Blue, USA

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Specification Grade
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
3.28 in x 1.64 in x 1.1 in
Style
Smooth Face
Type
Standard Duplex
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585552897
Color
Blue
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358555289
Weight
0.2 lb

Dimensions

Height
1.1 Inch
Length
3.28 Inch
Width
1.64 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Tamper-Resistant, LED Indicator
  • Assembled in USA
  • Quick Connect- SNAPConnect®, Tamper-Resistant, LED Indicator, USA Product
