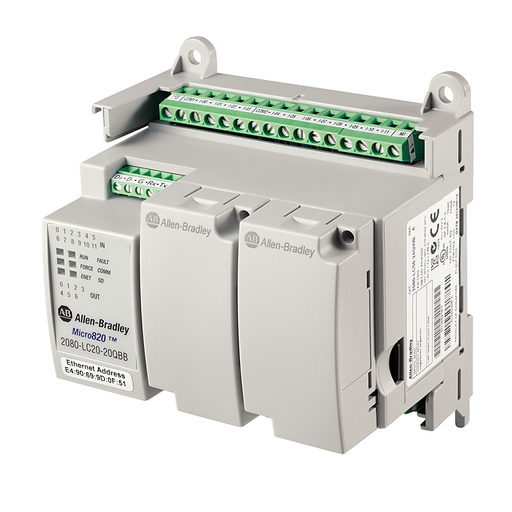

Product image for A-B 2080-LC20-20QBBK Micro820 20 I/
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

A-B 2080-LC20-20QBBK Micro820 20 I/

Manufacturer: Allen Bradley / Rockwell | Catalog # 2080-LC20-20QBBK | Codale Part # 4378631
$456.64/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Micro820 20 I/O ENet/IP Controller CC

Technical Information

Memory
20 KB
Output
1 Analog, 7 Relay, 7 Digital
Tc Connection
2 Plug-In
Type
Compact, 20-Point
Voltage
12-24 VDC (Input), 7-24 VDC (Output)

Manufacturer Information

Brand
Allen-Bradley

General Product Info

12-Digit UPC
191326312387
Product UPC
19132631238
Used With
2080 Micro800 System
Weight
0.7500 lb
Features
  • Remote LCD display and keypad for Micro820 controller
  • microSD™ card for Micro820®, Micro830®, Micro850®, and Micro870®controllers
  • Address even the most intensive serial communications tasks with Modbus RTU and ASCII protocol support
  • Allow you to customize your controller in a cost-effective manner for input-intensive or output-intensive applications
  • Include DeviceNet® scanner modules that enhance communication capabilities up to 20 nodes of PowerFlex® AC drives or CompactBlock LDX I/O and also reduce wiring and installation costs for larger standalone machines that have distributed drives and I/O
  • 120/240VAC to 24VDC Power Supply for Controller, 12W only
  • Provide high-accuracy real-time clock function without need to calibrate or update
  • LCD display and keypad for Micro810® controller
  • Provide isolated serial port to support RS-232 and RS-485 communications
  • Include motion high speed counter modules that support touch probe input in hardware for exact registration of axis and also provide position verification for servo and encoder feedback modes
  • 120/240VAC to 24VDC Power Supply for Controller and Expansion I/O modules
  • Allow you to expand with as many as five additional serial ports
  • Provide one-touch back-up, supports removal and insertion under power
  • Support analog input and output (2-channel, 4-channel, non-isolated)
  • Snaps easily into controller without expanding the footprint
  • Include resistance temperature detector/thermocouple (2-channel, non-isolated) modules that support temperature control when used with PID
  • Reduce the need for external relays with flexibility to add as many as 20 relay outputs
  • Include trim potentiometer modules (6-channel, analog input) that are low-cost method of adding six analog presets for speed and position control and can also be embedded into controllers to avoid casual access by operators
  • USB adapter plug for Micro810 controller
  • Allow you to expand with as many as 20 analog inputs
  • Double the amount of I/O without increasing the controller size
  • Operates in -2065 °C (-4149 °F) temperatures
