HWDK 5462WHI RCPT, DUP, COMM, 20A 2

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 5462WHI | Codale Part # 4380129
$29.01/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

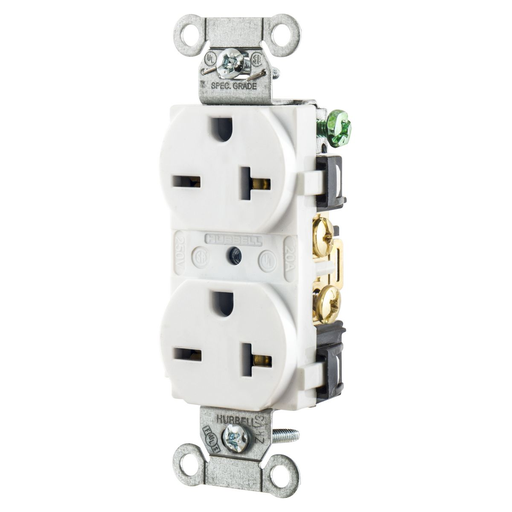

Straight Blade Devices, Receptacles, Duplex, Heavy Duty Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, White

Technical Information

Amperage
20 Amp
Applications
Commercial Grade
Conductor Size
14-12 AWG
Current
20 Amp
Dielectric Strength
2000 V
Grade
Commercial
Horsepower
2 hp
Material
Composite
Mounting Type
Screw
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Smooth Face
Tc Connection
Terminal Screws
Temperature Rating
-40 to 70 degrees C
Type
Smooth Face, Weather Resistant
Voltage
250 Volt
Wattage
1575 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585555928
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Other Means
Product Series
Hubbell-PRO
Product UPC
78358555592
Weight
0.2 lb

Dimensions

Height
1.7 Inch
Length
4.2 Inch
Width
1.900 in

Certifications and Compliance

Country of Origin
China
Features
  • Back and side wired
  • Fed- Spec UL listed
  • Smooth nylon face, Brass triple-wipe contacts
  • Self Grounding
