NVENT HOF PTHS362436X PROTEK DH Sol

Manufacturer: nVent Hoffman | Catalog # PTHS362436X | Codale Part # 4383180
$8,134.83/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

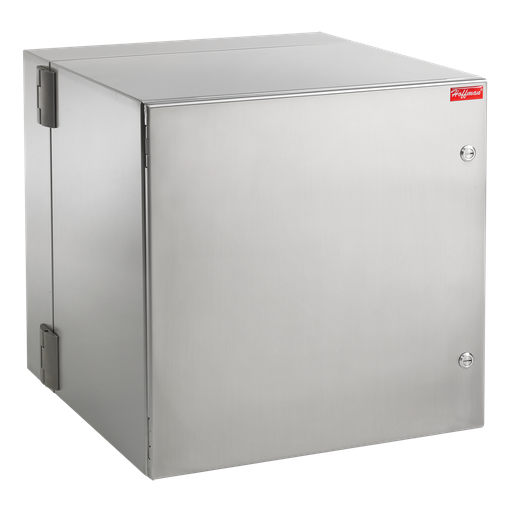

ProTek Double-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Double-Hinge Solid Type 4 4X 12, PTHS362436X item measures 36.30x23.62x36.02in. with a material of SS304 Finish Brushed.

Technical Information

Applications
Corrosive Environments; Datacom and Telecom Equipment; Networking, Storage and Data Center; Controls and Drives
Body Thickness
1.9 mm
Material
Stainless Steel
Type
Data Networking Wall Mounted Cabinets

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProTek

General Product Info

12-Digit UPC
783510291235
Color
Unpainted
Finish
Brushed
Product UPC
78351029123
Weight
166 lb

Dimensions

Depth
36.02 Inch
Height
36.3 Inch
Length
42 Inch
Width
23.62 in
DISK UNSPSC
43223306
Features
  • Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
  • Solid door provides complete physical and visual protection
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
  • All seams are fully welded and ground smooth
  • Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
  • Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet; two keys are included with each cabinet
  • Stainless steel cabinet is provided with a quarter-turn slotted latch
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
  • On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet
  • Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
