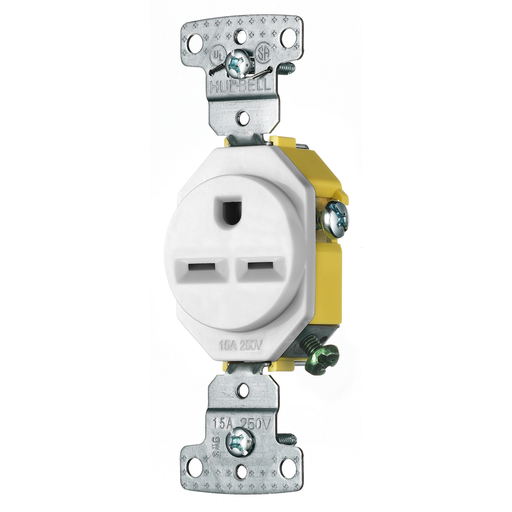

Product image for Hubbell RR155W RESI SGL Receptacle, 15A 250V, SELF GRND, WH
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell RR155W RESI SGL Receptacle, 15A 250V, SELF GRND, WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # RR155W | Codale Part # 4383486
$9.11/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
TradeSelect, Straight Blade Devices, Receptacles, Residential Grade, Single, 15A 250V, 2-Pole 3-Wire Grounding, 6-15R, White

Technical Information

Amperage
15 Amp
Applications
Residential
Conductor Size
14-12 AWG
Connection Type
Side Wired
Current
15 Amp
Grade
Residential
Grounding
Self
Material
Thermoplastic
Mounting Type
Screw
NEMA
6-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard Sized
Tc Connection
Side Wired
Type
Non-Reversing
Voltage
250 Volt
Wattage
3750 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Trade-Select™

General Product Info

12-Digit UPC
883778300547
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
88377830054
Weight
1.0000 lb

Dimensions

Height
1 Inch
Length
4.3 Inch
Width
2.240 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth indented face appearance
  • Multiple-drive Slot/Phillips/Robertson head screws
  • Tough thermoplastic ultrasonically welded cover and base
  • Self Grounding
