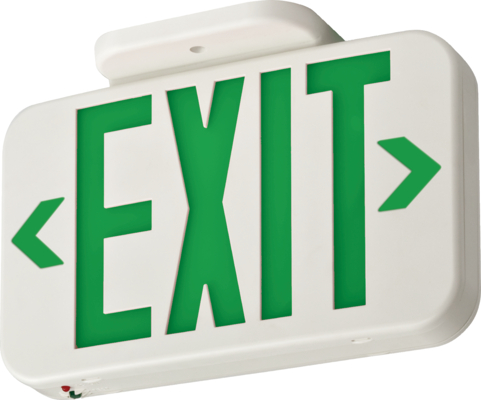

Lithonia EXRG-M6 LED Exit Sign, Switchable Red / Green Lettering, 120-277V AC Only, Thermoplastic White Housing

Manufacturer: Lithonia Lighting | Catalog # EXRGM6 | Codale Part # 4383659
$45.42/ea
ea
Log in or register to view your price, purchase history, and more!
16 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

Technical Information

Applications
Behavioral Health,Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Retail
Color Temperature
Green,Red,Variable K
Correlated Color Temp
Green,Red,Variable K
Lamp Type
LED
Material
Thermoplastic
Mounting Type
Surface
Power Source
Hardwired
Type
Emergency Exit Sign
Voltage
120 Volt
Wattage
0.3 Watt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
194994900658
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Textured
Product UPC
19499490065
Weight
1.6 lb

Dimensions

Height
7.13 Inch
Length
11.63 Inch
Width
1.63 in

Certifications and Compliance

Country of Origin
China,China
Features

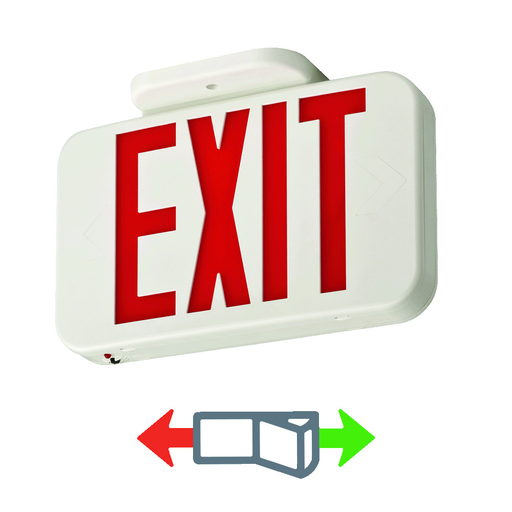

  • TECHNOLOGY: The EXRG LED Exit Sign has an internal switch for red or green color selection
  • RATINGS: UL Listed, Meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), FCC Title 47, Part 15, Subpart B and OSHA, Indoor damp location 50°F to 104°F (10°C to 40°C) listed
  • VOLTAGE AND MOUNTING: Dual-voltage input 120V or 277V AC. Top, side and back mount. Mounting pattern on canopy (top and side mount) and back plate (back mount) fits most standard size junction boxes.
  • VOLTAGE: Dual-voltage input 120V or 277V AC (60 Hz).
  • HOURS OF LIFE: The typical life of the LED lamp is 10 years
  • DESIGN FEATURES: Offered in the bright white thermoplastic housing, the EXRG has a classic design with updated features, This fully assembled single-face exit ships standard with an extra faceplate with red and green panel inserts.
  • BATTERY: AC only, emergency battery not included
  • WARRANTY: 2-year limited warranty

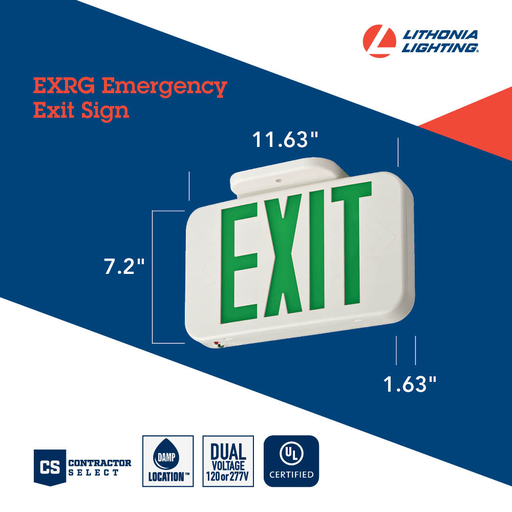

  • DIMENSIONS: (Length x Depth x Height): 11.63in x 1.63in x 7.2in
Standards
  • NFPA 101
  • NFPA 70
  • ULCA Title 20
Applications
  • Behavioral Health
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Retail
