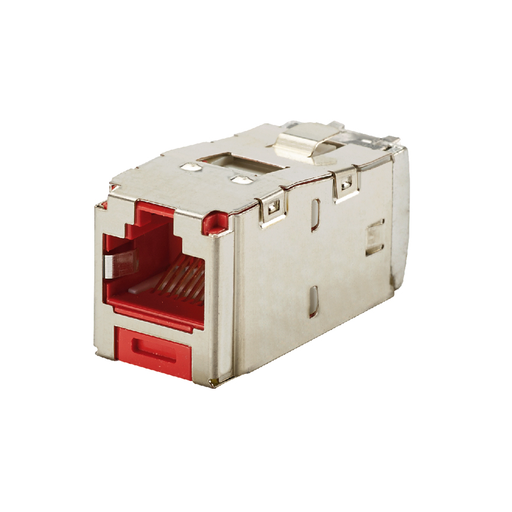

Product image for Panduit CJS6X88TGRDY STP RJ45 Cat 6A TG Jack Module, Red
Image thumbnail 0
Image thumbnail 1
Email

Panduit CJS6X88TGRDY STP RJ45 Cat 6A TG Jack Module, Red

Manufacturer: PANDUIT | Catalog # CJS6X88TGRDY | Codale Part # 4386446
$44.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The Mini-Com® Cat 6A Shielded RJ45 TG Jack Module is designed to terminate shielded 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.

Technical Information

Applications
Shielded
Cable Entry
T568A/T568B
Cable Size
26-22 AWG
Cable Type
Category 6a
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Mounting Type
Surface/Patch Panel/Faceplate
Number of Positions
8
Temperature Rating
-10 to 65 degrees C
Type
RJ45, 8-Wire, Universal, Shielded

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
10Gig™, Mini-Com, TX6A™

General Product Info

12-Digit UPC
074983945177
Color
Red
Environmental Conditions
< 40 m? Humidity, < 40 m? Thermal Shock
Product UPC
07498394517
Used With
T568A/T568B Cable
Weight
0.0400 lb

Dimensions

Depth
1-1/2 Inch
Height
0.74 Inch
Overall Length
1.5 in
Width
15.7 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
