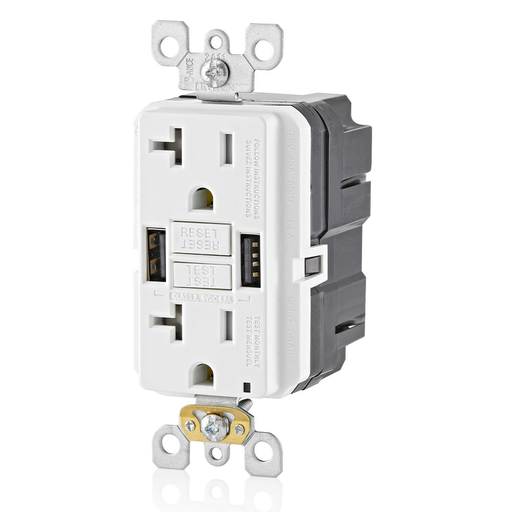

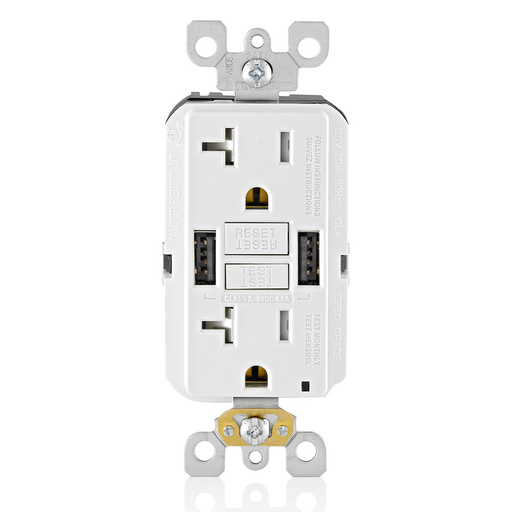

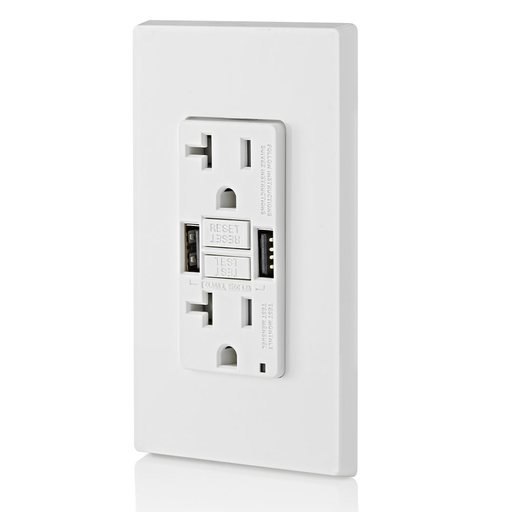

LEV GUSB2-W GFCI COMBO USB CHARGER

Manufacturer: Leviton | Catalog # GUSB2-W | Codale Part # 4386610
$81.76/ea
ea
Log in or register to view your price, purchase history, and more!
14 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, SmartlockPro® Self-Test GFCI Combination Type A USB In-Wall Charger, Wire Leads, NEMA 5-20R, 24W (4.8 Amps), Dual Type-A/A USB Chargers, screws and self-grounding clip included - White

Technical Information

Amperage
20 Amp
Body Material
Thermoplastic
Conductor Size
12 AWG
Dielectric
1250 V
Face Material
Thermoplastic
Flamability Class
UL94, 5VA
Grade
Commercial,Residential
Grounding
Self-Grounding
Material
Thermoplastic/Galvanized Steel Strap
Mounting Type
Wall
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
5 Wire
Operating Temperature
-10 degrees C
Outlet Type
Tamper Resistant
Switch Type
Combination
Temperature Rating
-10 to 40 degrees C
Temperature Rise
150 %
Termination Type
Wire Leads
Torque
14 lb-in
Type
GFCI/USB Combo, Type A
Voltage
125 VAC

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477999974
Color
White
Product UPC
07847799997
Weight
0.4400 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
China
Patents
  • CA2621644
  • CA2624409
  • CA2677283
  • CA2730014
  • MX302458
  • MX308495
  • MX344697
  • US10483066
  • US7355117
  • US7697252
  • US7820909
  • US7868719
  • US8242362
  • US8587914
  • US9053886
  • US9276393
Features
  • SAFE - Delivers continuous ground fault protection, automatically self-tests to ensure it can respond to a ground fault
  • FAST CHARGING - Smart chip technology provides over 2X the charging power of other GFCI USB outlets for a faster charge
  • CODE REQUIRED - Fulfill NEC® requirements anywhere GFCI protection is needed
  • SIMPLE - Status indicator light provides simple, intuitive feedback
  • INSTALL - Requires extra deep wallbox for installation
NEMA
  • 5-20R
