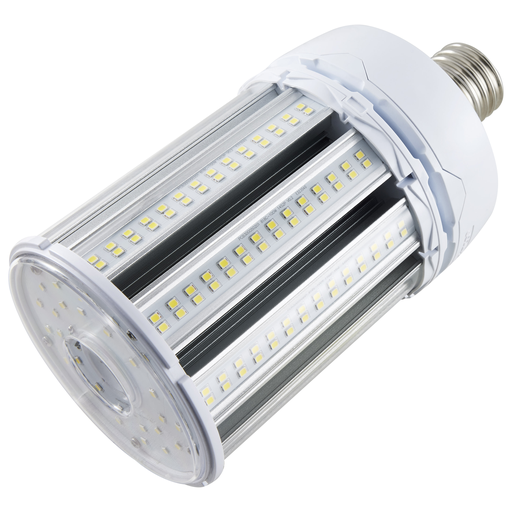

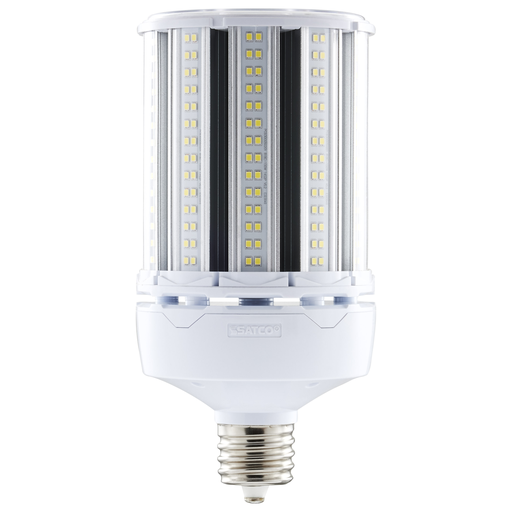

Satco S49396 100 Watt LED HID Replacement; 5000K; Extended Mogul base; Type B Ballast Bypass; Economy Hi-Pro

Manufacturer: SATCO Lighting | Catalog # S49396 | Codale Part # 4386639
$184.24/ea
ea
Log in or register to view your price, purchase history, and more!
13 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
100 Watt LED HID Replacement - 5000K - Extended Mogul Base - Type B Ballast Bypass - Economy Hi-Pro

Technical Information

Amperage
1.000-0.361 Amp
Applications
For Indoor and Outdoor Applications
Average Rated Life
35000 hr
Ballast Type
Type B Ballast
Beam Angle
300
Beam Spread
300
Color Temperature
5000 K
Correlated Color Temp
5000 K
Dimmable?
No
Incandescent Equivalent
400 W
Indoor Outdoor
Indoor;Outdoor
IP Rating
IP65
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
13,800 Lumen
Material
Polycarbonate
Operating Temperature
-22 degrees F
Power Factor
0.9
Technology Type
LED
Type
Economy Hi-Pro
Voltage
100 Volt
Wattage
100 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923493966
Environmental Conditions
Damp Location Rated
Finish
White
Housing Color
White
Product UPC
04592349396
Weight
3.53 lb

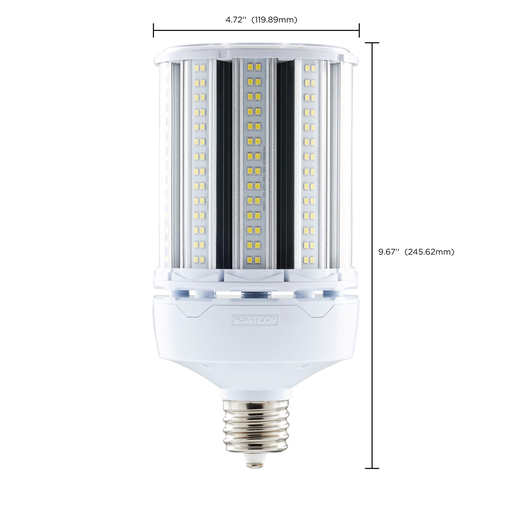

Dimensions

Warranty Length
3 yr

Certifications and Compliance

Country of Origin
China
Features
  • High lumen per watt ratio
  • Superior LED light output
  • Rated for use in enclosed fixtures
  • Advanced thermal management
  • Suitable for use in damp locations
  • Up to 35000 Hours of use
  • 4kV built-in surge protection

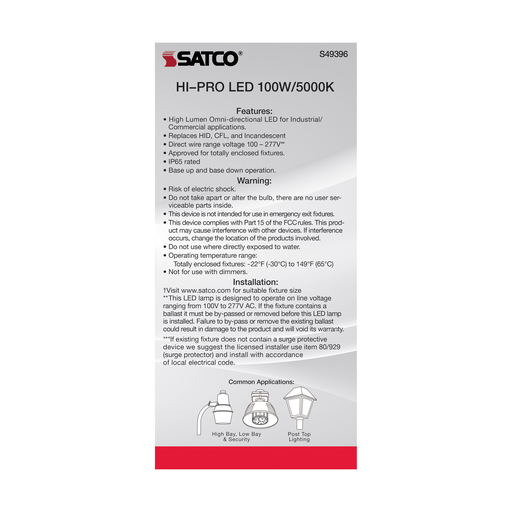

Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures.
Replaced By Products
  • S29396
  • S39396
  • S9355
  • S9396
