Keystone KT-FLED60-R1A-UNV-8CSB-VDIM Compact 60W General Purpose LED Flood Light, Selectable Lumens & CCT, 0-10V Dimming, Universal Mounting - Bronze

Manufacturer: Keystone Technologies | Catalog # KT-FLED60-R1A-UNV-8CSB-VDIM | Codale Part # 4387705

$175.26/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.

Compact 60W General-Purpose LED Floodlight | 120-277V Input | 3000-5000K | Bronze Housing | Multiple Mounting Options

Applications: Building or ground mount application for outdoor illumination - landscapes, display signage, loading docks, building facades, pathways, parking areas, and other general site lighting requirements

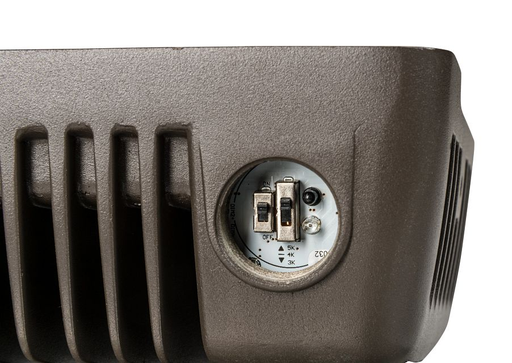

  • Keystone Color Select technology 3000K/4000K/5000K
  • Heavy-duty, die cast aluminum housing featuring built-in glare visor and tempered glass lens
  • Uniform, wide flood design - NEMA 7H × 7V distribution pattern

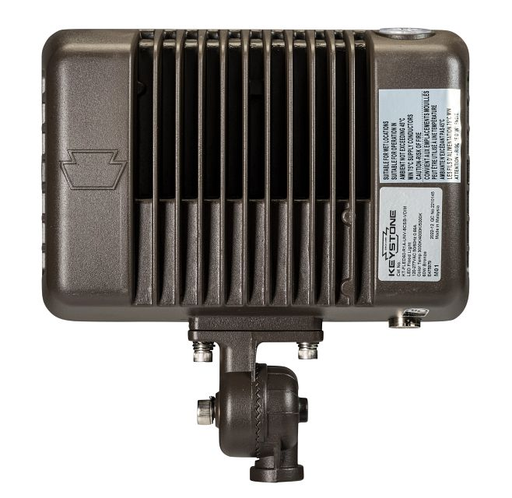

  • Heavy-duty 1/2-inch knuckle mount with 90º adjustment and yoke mount options included
  • Powered by Keystone 0–10V dimming LED driver 10% min and with 18-inch input cable, pre-stripped
  • Built-in dusk-to-dawn photocell behind translucent 3/4-inch threaded plug with anti-yellowing agent
  • Ambient operating temperature: -30ºC/-22ºF to 45ºC/113ºF
  • Power Factor: >0.95 and THD: <20%
  • LED chip lifetime: L70 >100,000 hrs @ 25ºC/77ºF ambient fixture temp
  • Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
  • Fixture impact rating IK07, UL listed for wet locations, IP65

Technical Information

Lumens
8,040 Lumen
Type
Flood Light
Voltage
120 Volt
Wattage
35 Watt

Manufacturer Information

Brand
Keystone Technologies

General Product Info

12-Digit UPC
843654128986
Product UPC
84365412898
Weight
4.63 lb

Dimensions

Warranty Length
10
