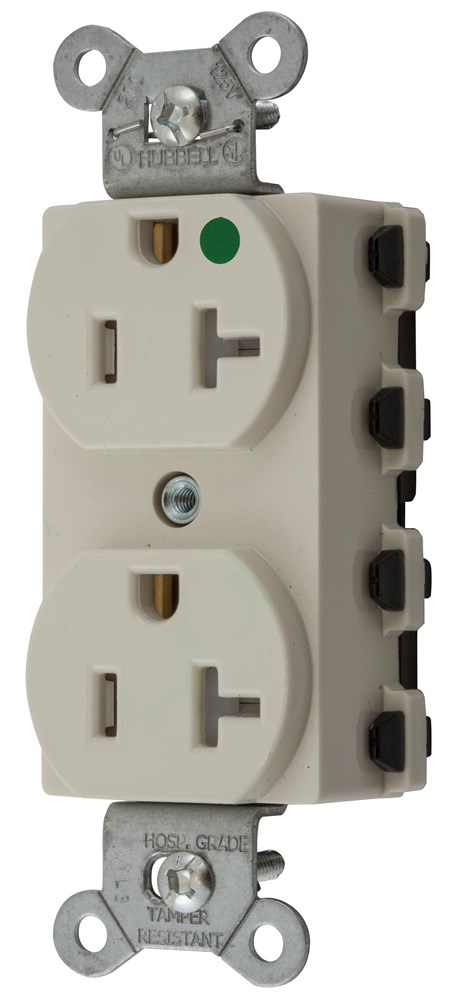

Product image for Hubbell SNAP8300LATRA Snap2Connect® DUP HG 20A/125V TR LA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell SNAP8300LATRA Snap2Connect® DUP HG 20A/125V TR LA

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP8300LATRA | Codale Part # 4388719
$12.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Duplex, SNAPConnect, Hospital Grade, Tamper Resistant, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nylon, Light Almond, USA

Technical Information

Amperage
20 Amp
Applications
Hospital Grade
Conductor Size
12 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Enclosure Material
Stainless Steel
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
3.28 in x 1.64 in x 1.1 in
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Smooth Face
Tc Connection
Terminal Screws
Type
Non-Reversing
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585553566
Color
Light Almond
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358555356
Weight
0.2 lb

Dimensions

Height
1.1 Inch
Length
3.28 Inch
Width
1.64 in

Certifications and Compliance

Country of Origin
USA
Features
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Quick Connect- SNAPConnect, Tamper Resistant
  • Fully insulated design
Industry Standard(s)
  • CSA Certified, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
